EU Machinery Directive Compliant
Available Models
ZBSY4-0.5-2ZBK3-2/PVC

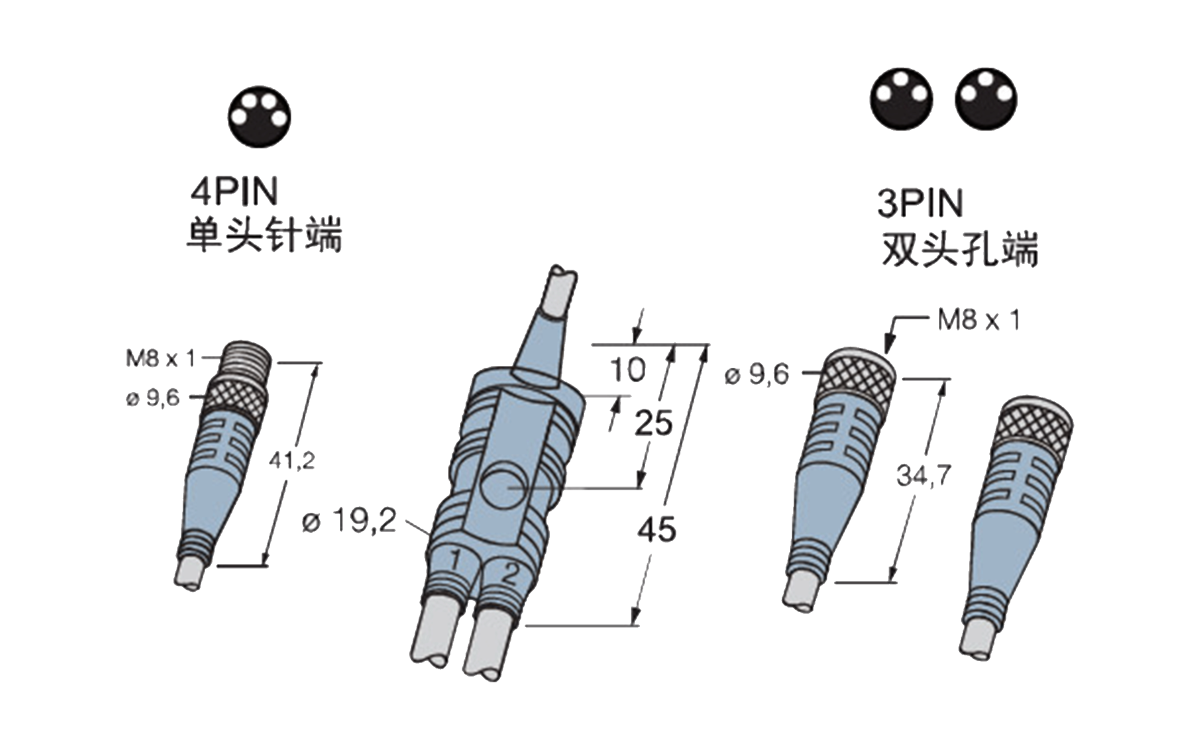

M8, Y-Splitter
ZZAK4P2-2-ZZAS4/PUR

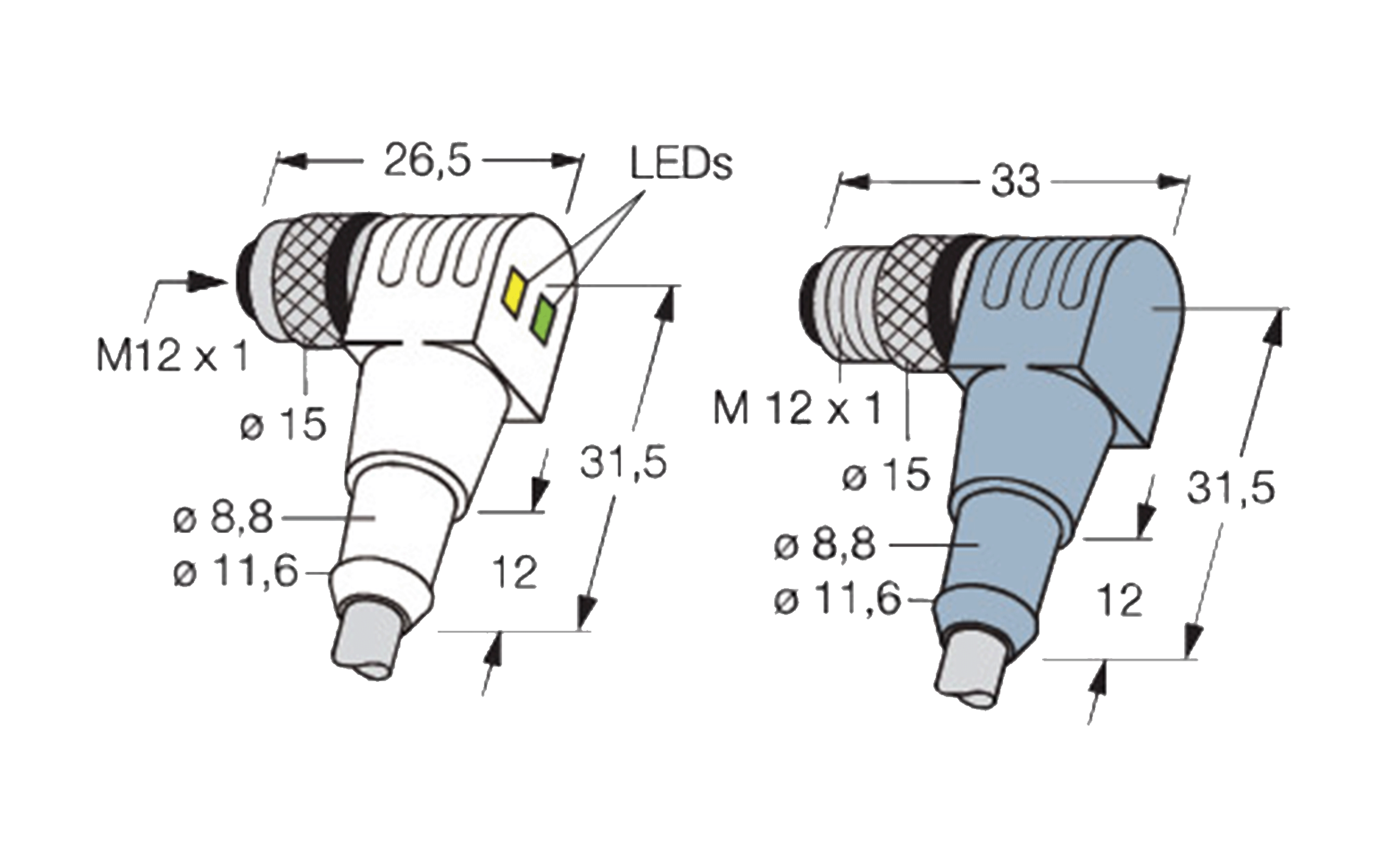

Double M12,with LED
CYCS4-2AK3

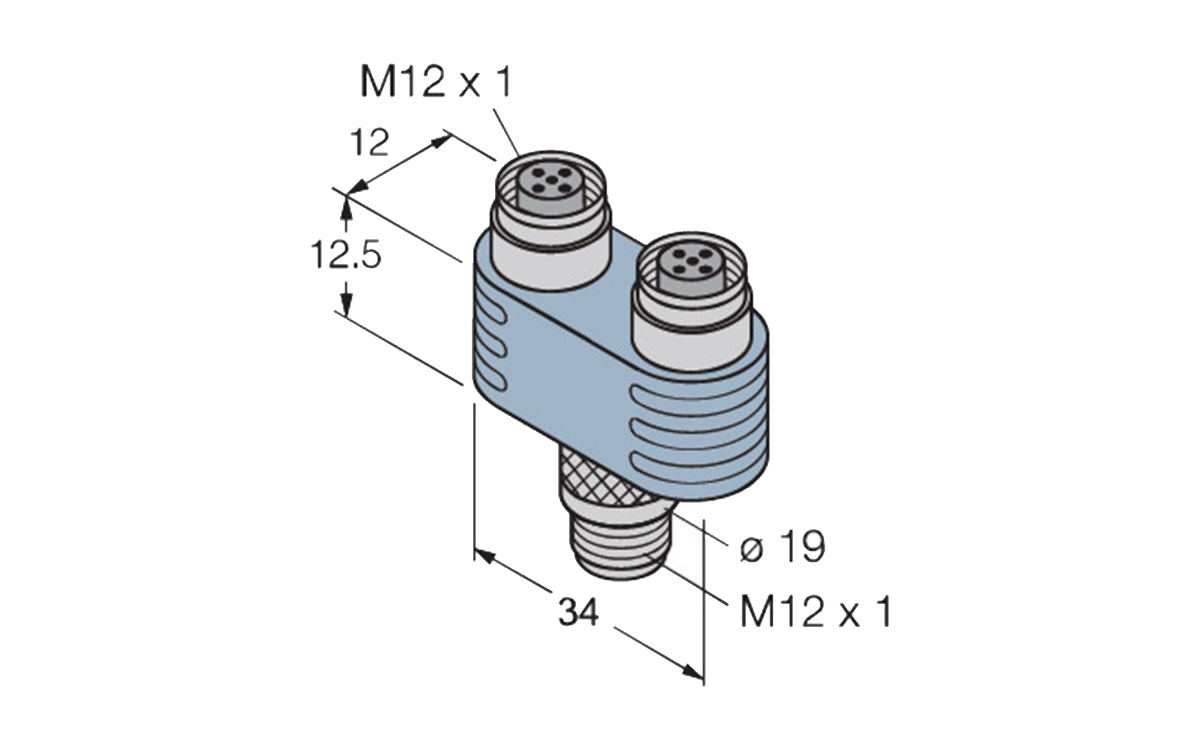

M12, Y-Splitter
ZAK3-2/PUR
Cable material：PUR
Series Technical Specifications
Connector

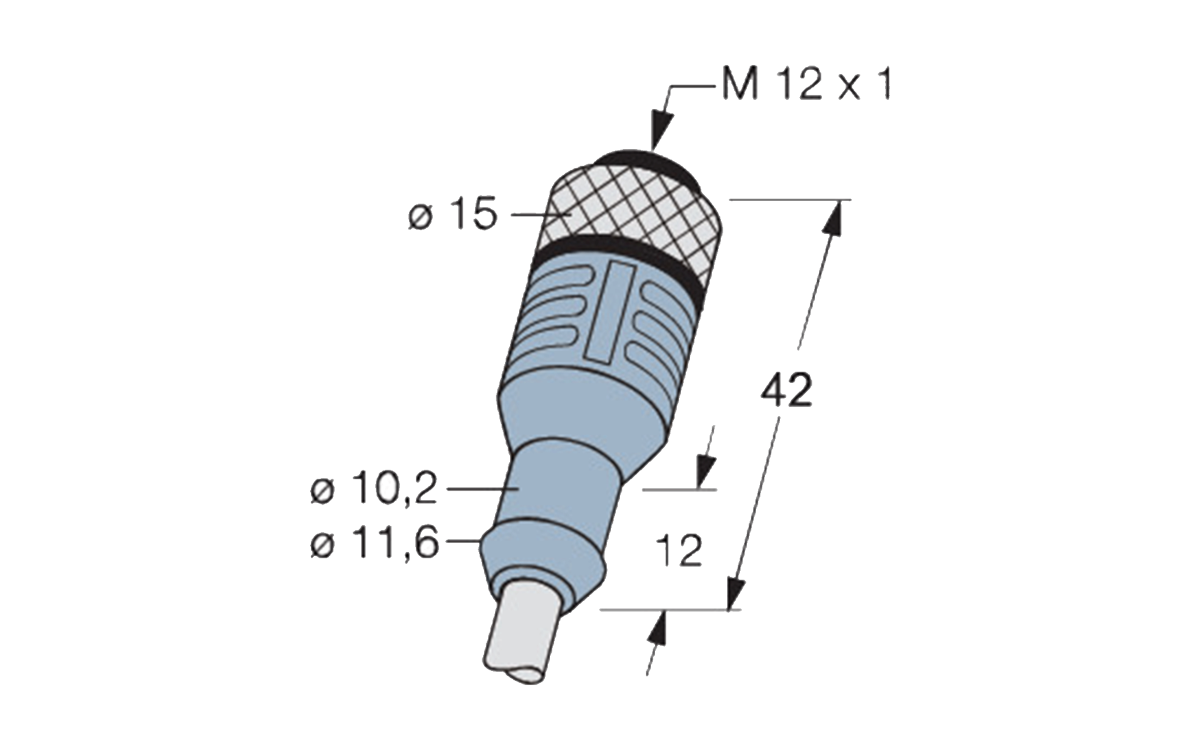

M8 / M12 Sizes
Type
Single / Double / Y-Splitter
LED
M12 with LED Options
Pins
2 / 3 / 4 / 5-pin Options
Y Type
4/3 or 5/4 Type Y
Material
PVC / PUR Cable Options
Length
2 m / 5 m / 10 m
Voltage
10...30 VDC
Current
4 A Rated Current
Protection
IP67(screwed together)
Contacts
CuZn Gold-plated Contacts
Seal
Viton(FPM) Plastic / 5.25 mm Cable Diameter
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
