EU Machinery Directive Compliant
Available Models

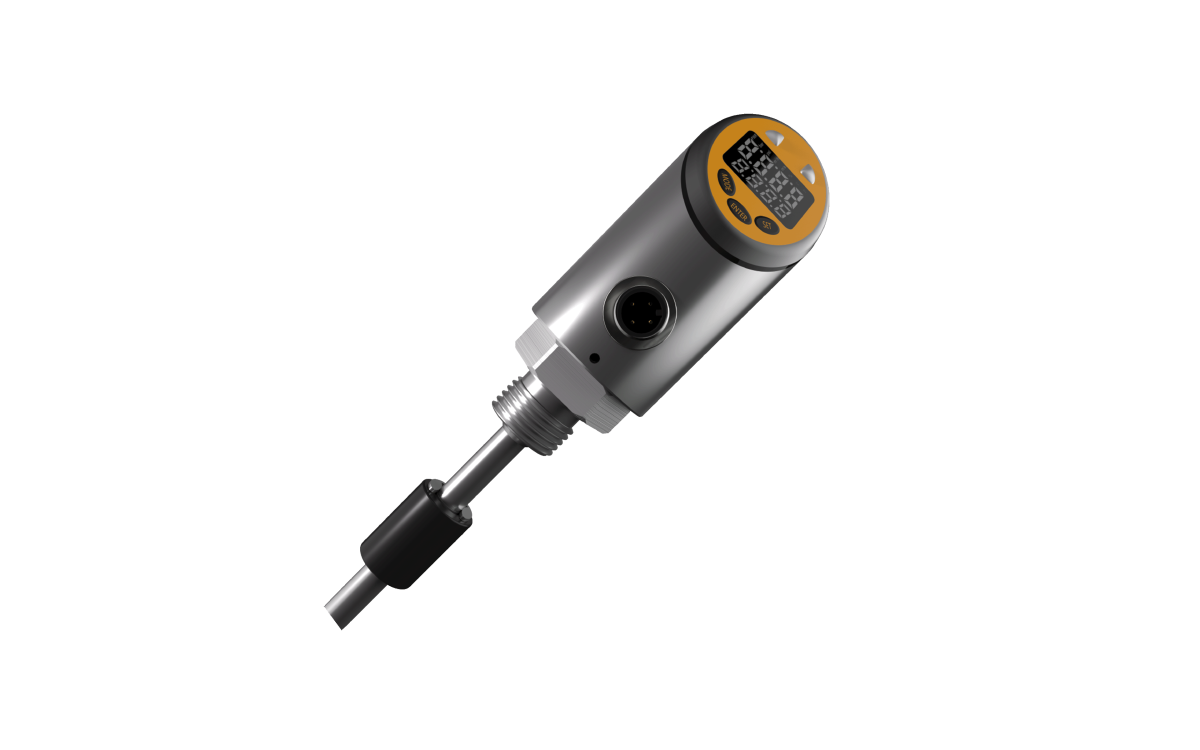

LTH-G1/2N-LI6D-SC/L250
Switching signal /analog signal , switching signal /IO-Link can be set

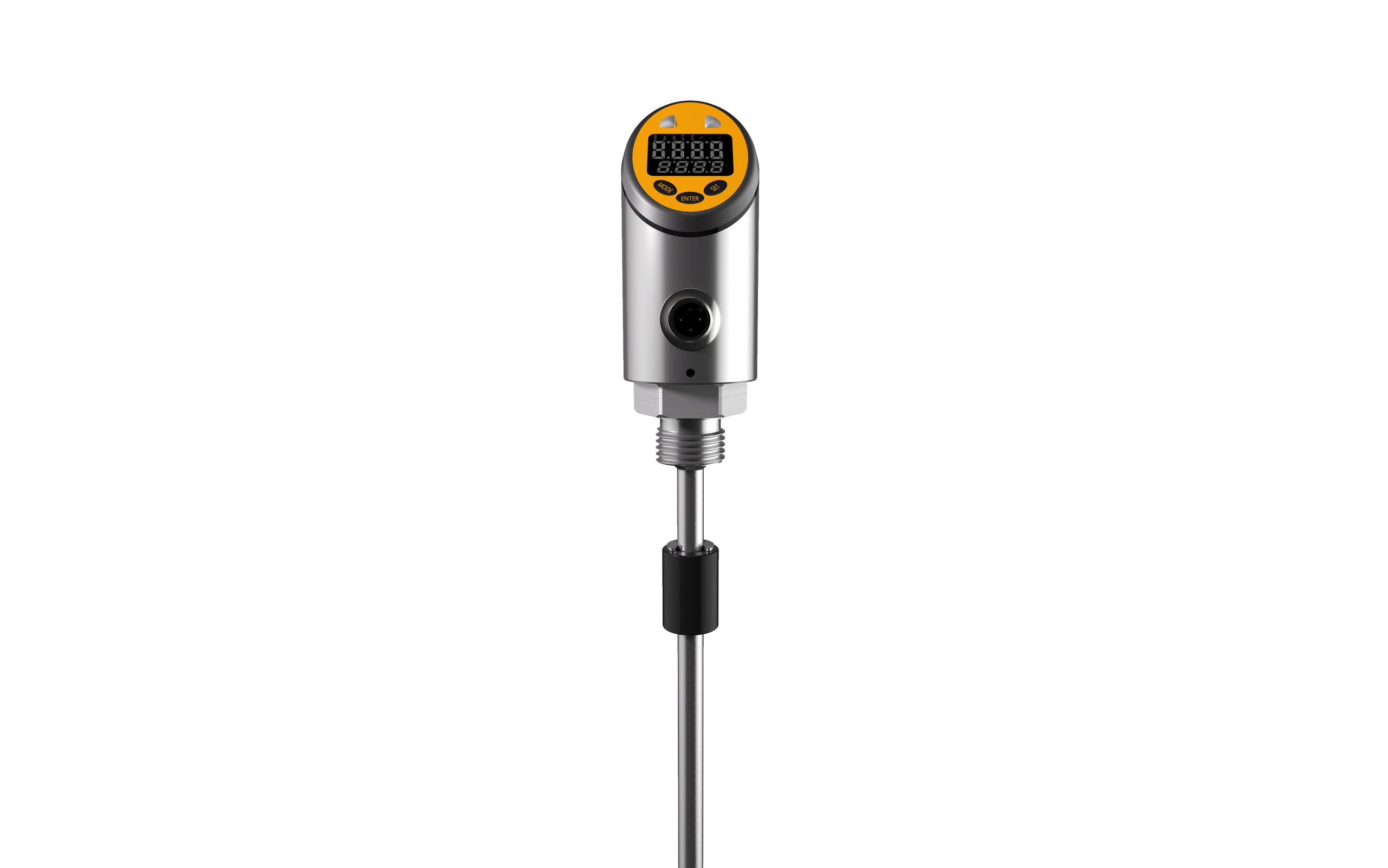

LTH-G1/2N-LI6D-SC/LXXX
Customizable probe rod length
Series Technical Specifications
Measurement
Level and temperature monitoring
Detection
Magnetic Float Detection
Protocol
IO-Link V1.1
Process Data
4-byte / 32-bit input data
Accuracy
5 mm Level Resolution
Temperature
-50…150 ℃ / 0.5 ℃Accuracy
Outputs
Switching / analog / IO-Link
Modes
NO/NC, PNP/NPN, push-pull
Display
300° Rotatable Digital Display
Interface
M12 A-code 4-pin
Connection
G1/2 thread; customizable probe length
Material
304 Stainless Steel / IP65
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
