EU Machinery Directive Compliant
Available Models

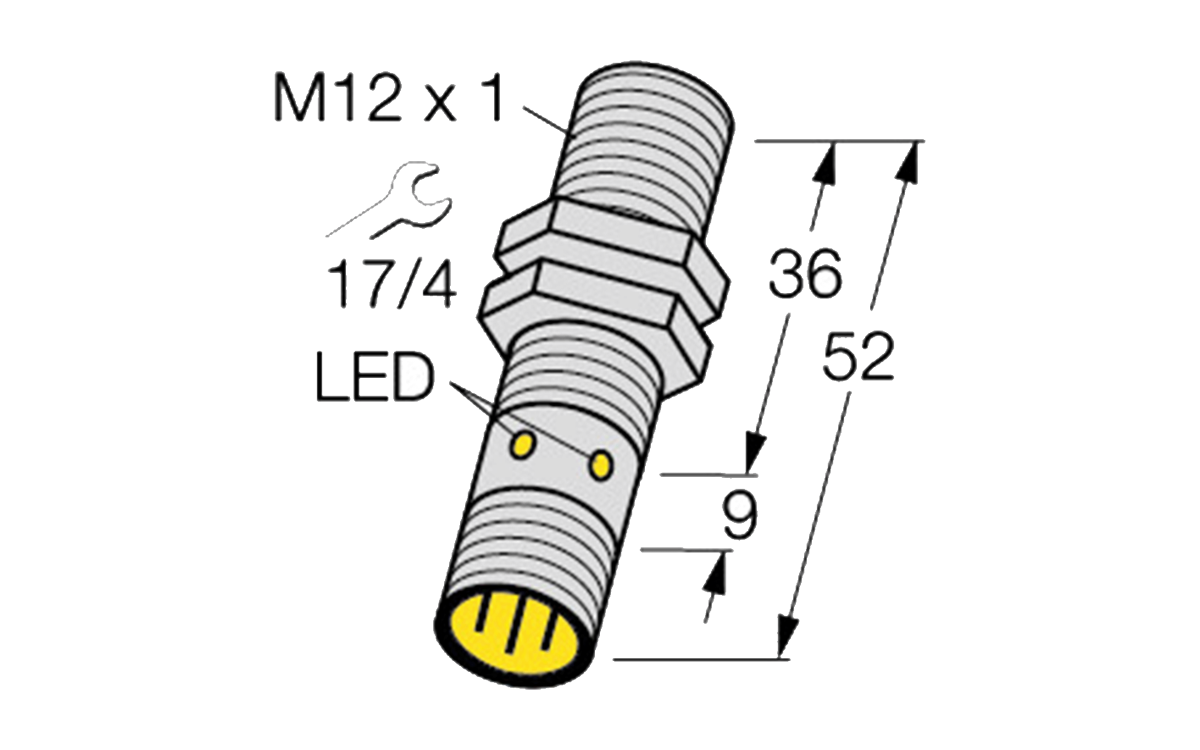

EL04X-12YP-RP6-SC
Rated switching distance:4mm

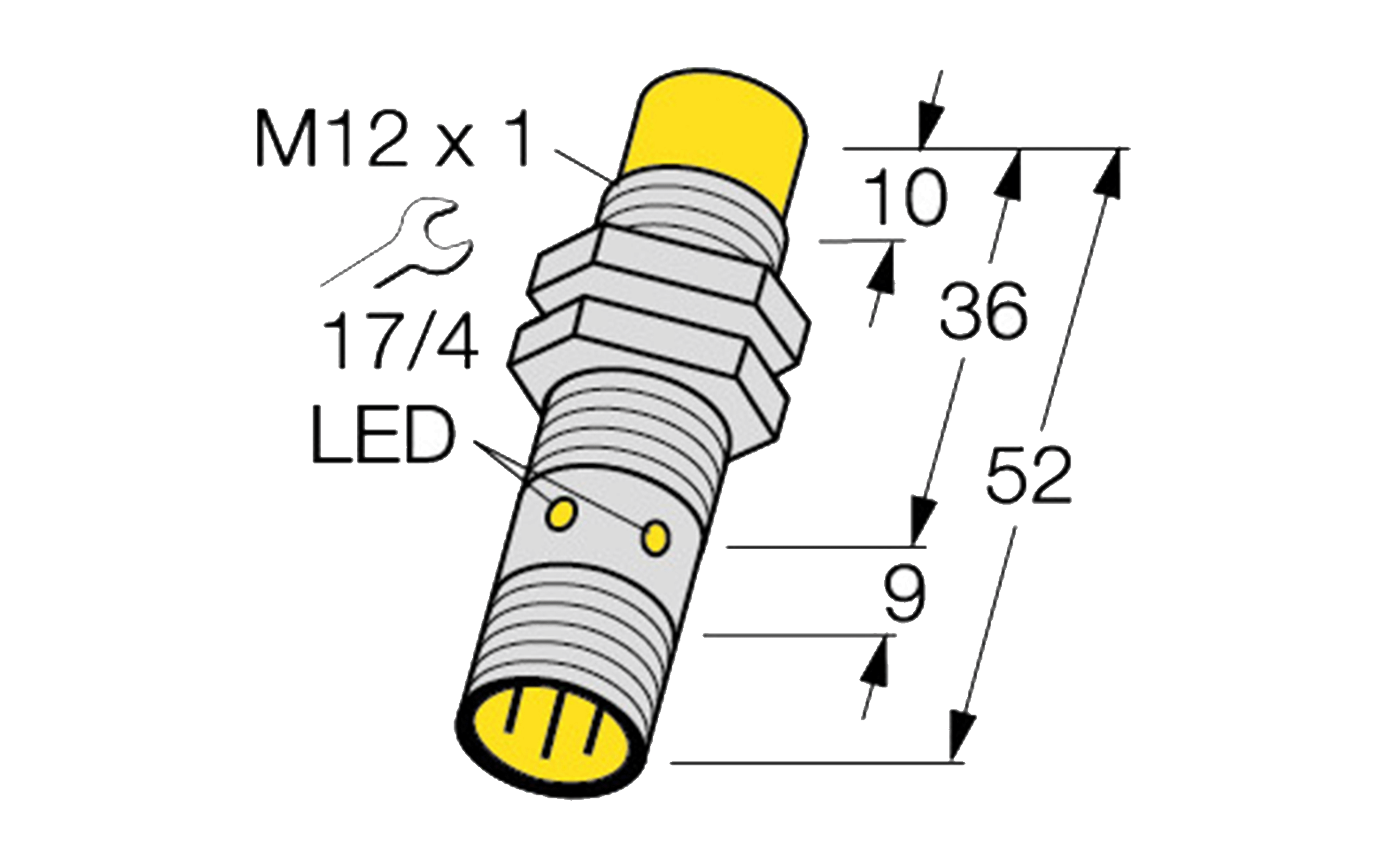

TL06X-12YP-AP6-SC
Rated switching distance:6mm

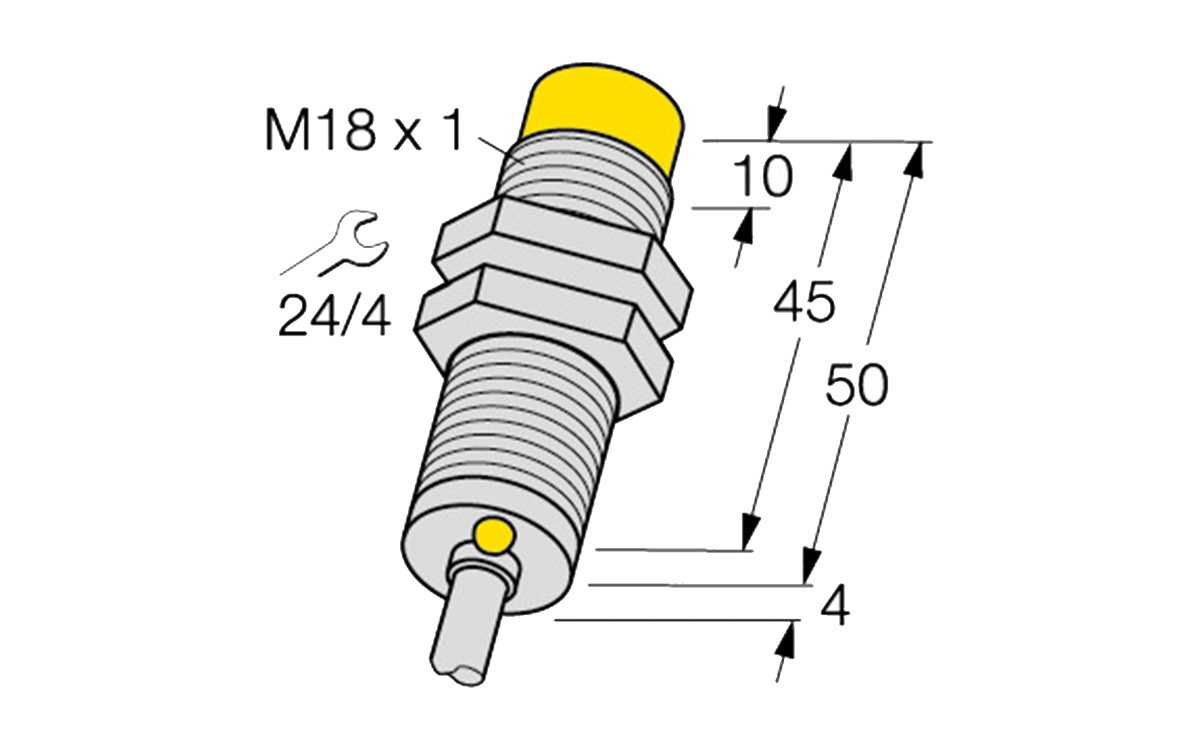

TL10X-18YP-RN6-C2
Rated switching distance:10mm

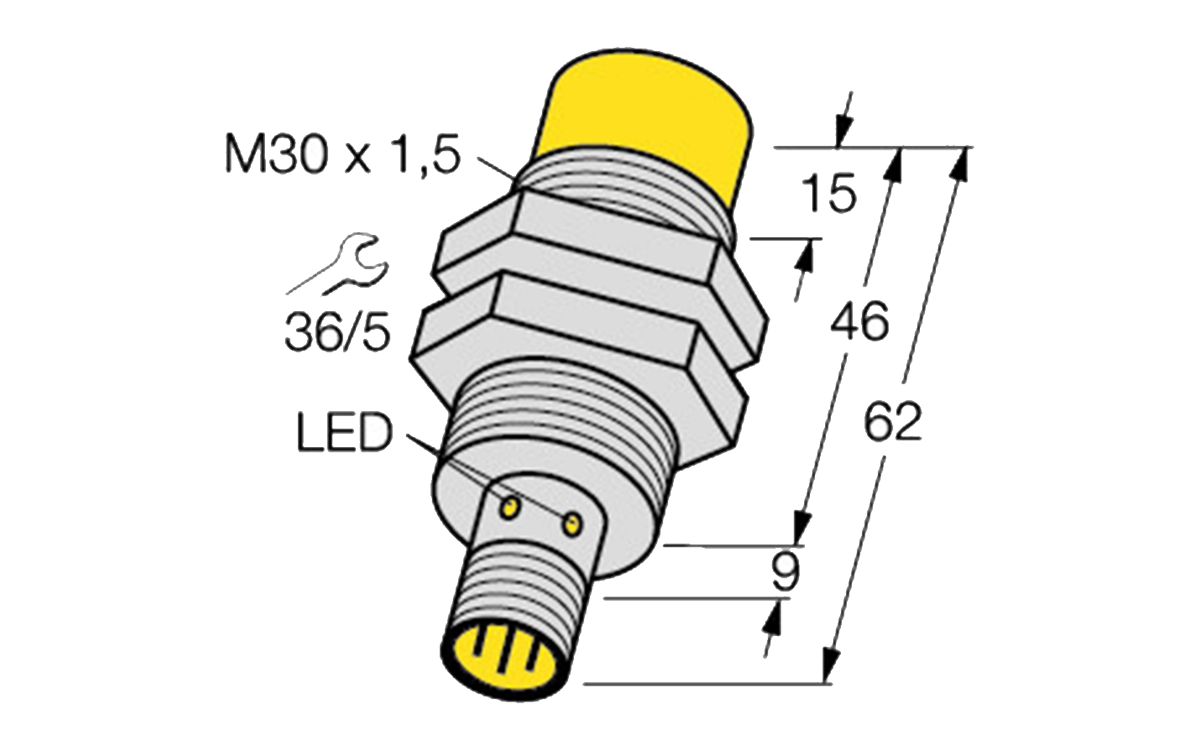

TL15X-30YP-AP6-SC
Rated switching distance:15mm
Series Technical Specifications
Detection
Non-contact Metal Detection
Sizes
M12 / M18 / M30 Available
Mounting
Flush / Non-flush Options
Distance
2 /4 /5 /6 /8 /10 /15 /20 mm
Outputs
PNP NO / NPN NO / PNP NC / NPN NC
Wiring
2-wire DC / 3-wire DC
Connection
M12 Connector / 2 m PVC / 2 m PUR
Voltage
10...30 VDC
Frequency
Up to 500 Hz
Material
Chrome-plated Brass Housing
Protection
IP67 Protection Class
Safety
Short-circuit / Reverse Polarity / Yellow LED
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
