EU Machinery Directive Compliant
Available Models

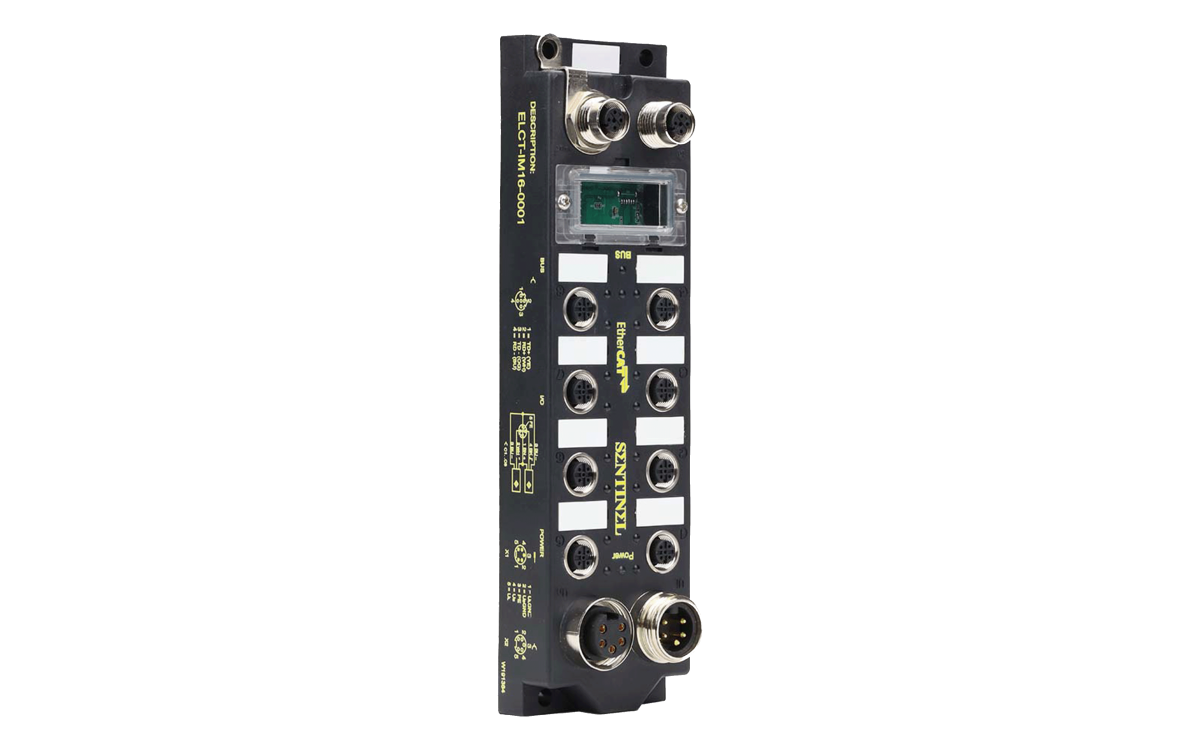

ELCT-IM16-0001
16-channel PNP input EtherCAT Remote I/O Module
CMCT-IOM16-0001
input+output EtherCAT Remote I/O Module
ELCT-IOM88-0001
8-channel PNP input + output EtherCAT Remote I/O Module
CMCT-OM32-0001
Support 100Base-TX EtherCAT Remote I/O Module
Series Technical Specifications
Protocol
EtherCAT Remote I/O
Ethernet
Integrated Ethernet Switch
Speed
100Base-TX
Channels
16 or 32-channel digital I/O
Input
PNP / NPN Options
Output
0.5A / 0.2A Output Current
Power
24 VDC ±10%
Connection
Dual D-coded M12 / RJ45 Options
Protection
IP67 / IP20 Options
Housing
High-strength plastic / metal housing
Sealing
Fully Potted Module Electronics
Auto
Auto-negotiation / Auto-MDI/MDIX
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
