EU Machinery Directive Compliant
Available Models

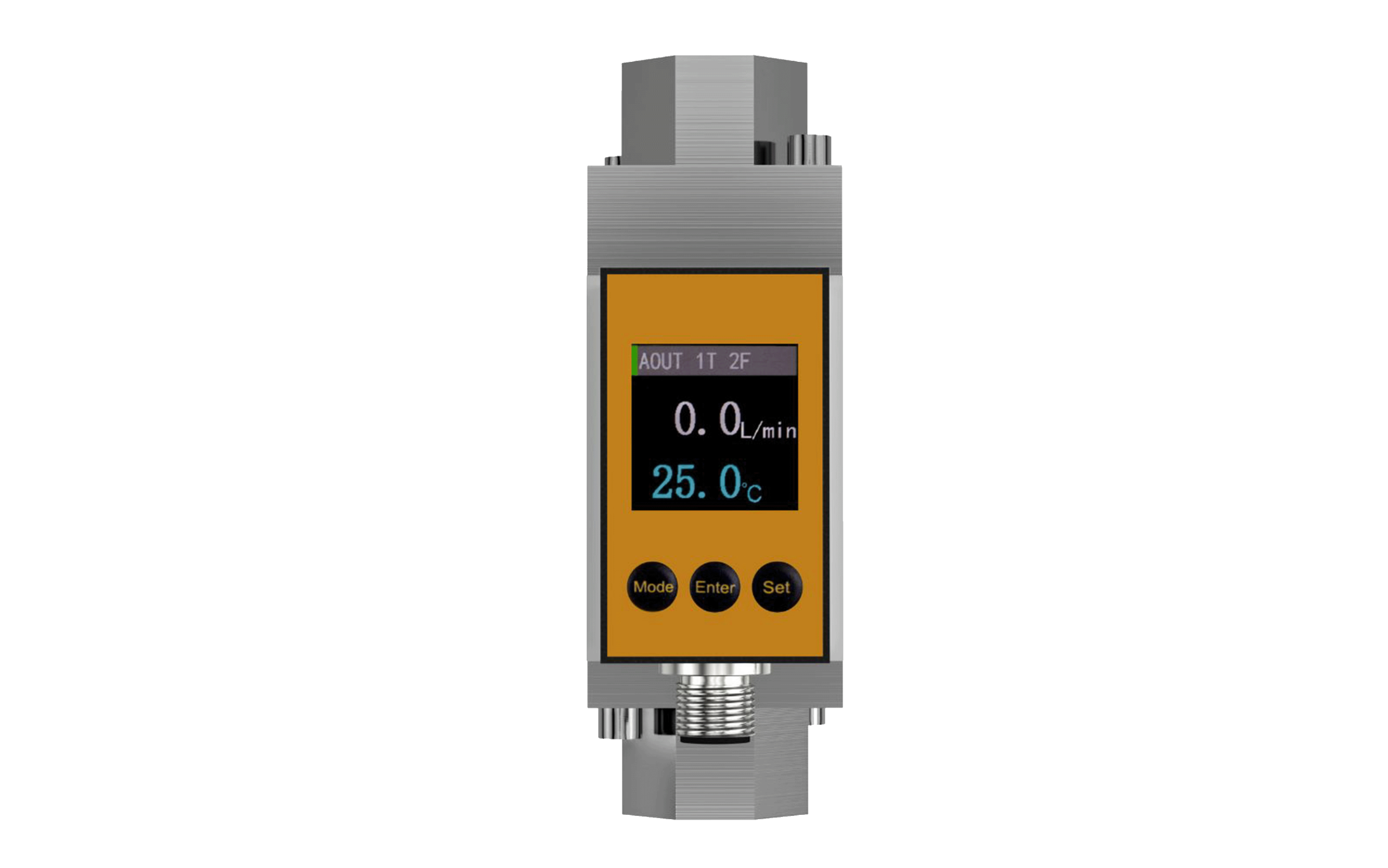

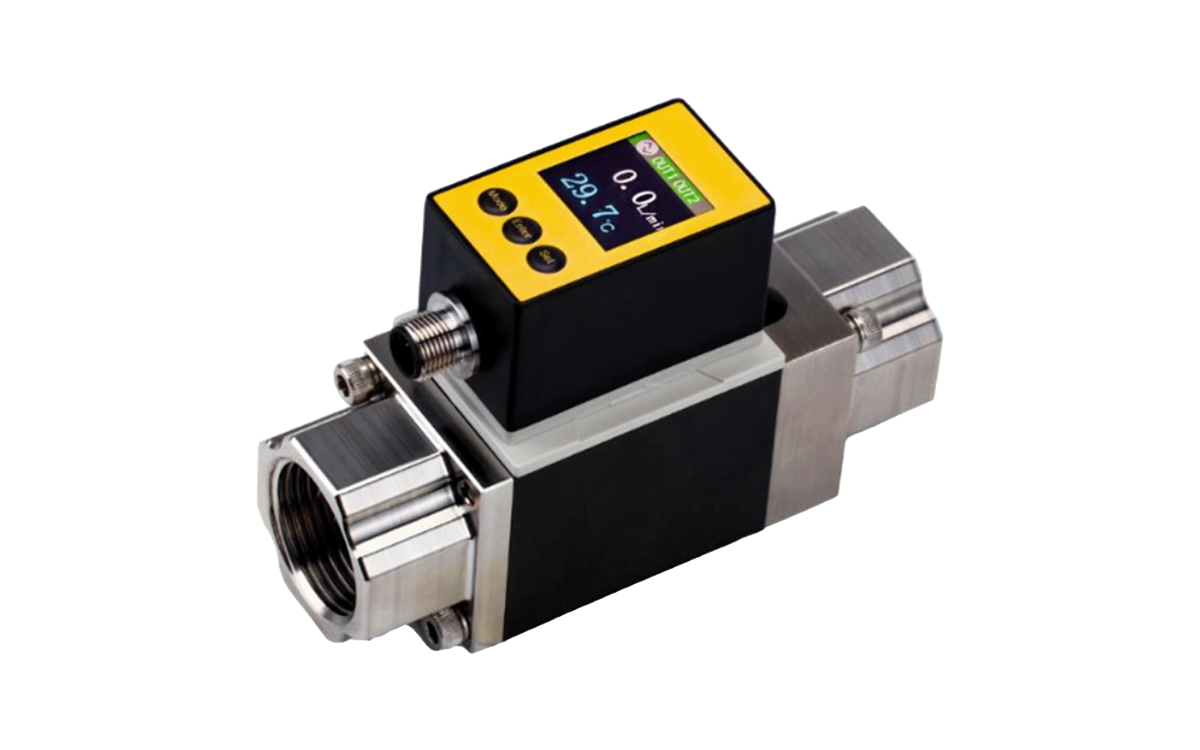

FMV-016-2AO
Two 4-20mA outputs
FMV-040-2AO
Two 4-20mA outputs
FMV-100-IOL
Two-way switching and IO-Link
FMV-016-IOL
Two-way switching and IO-Link

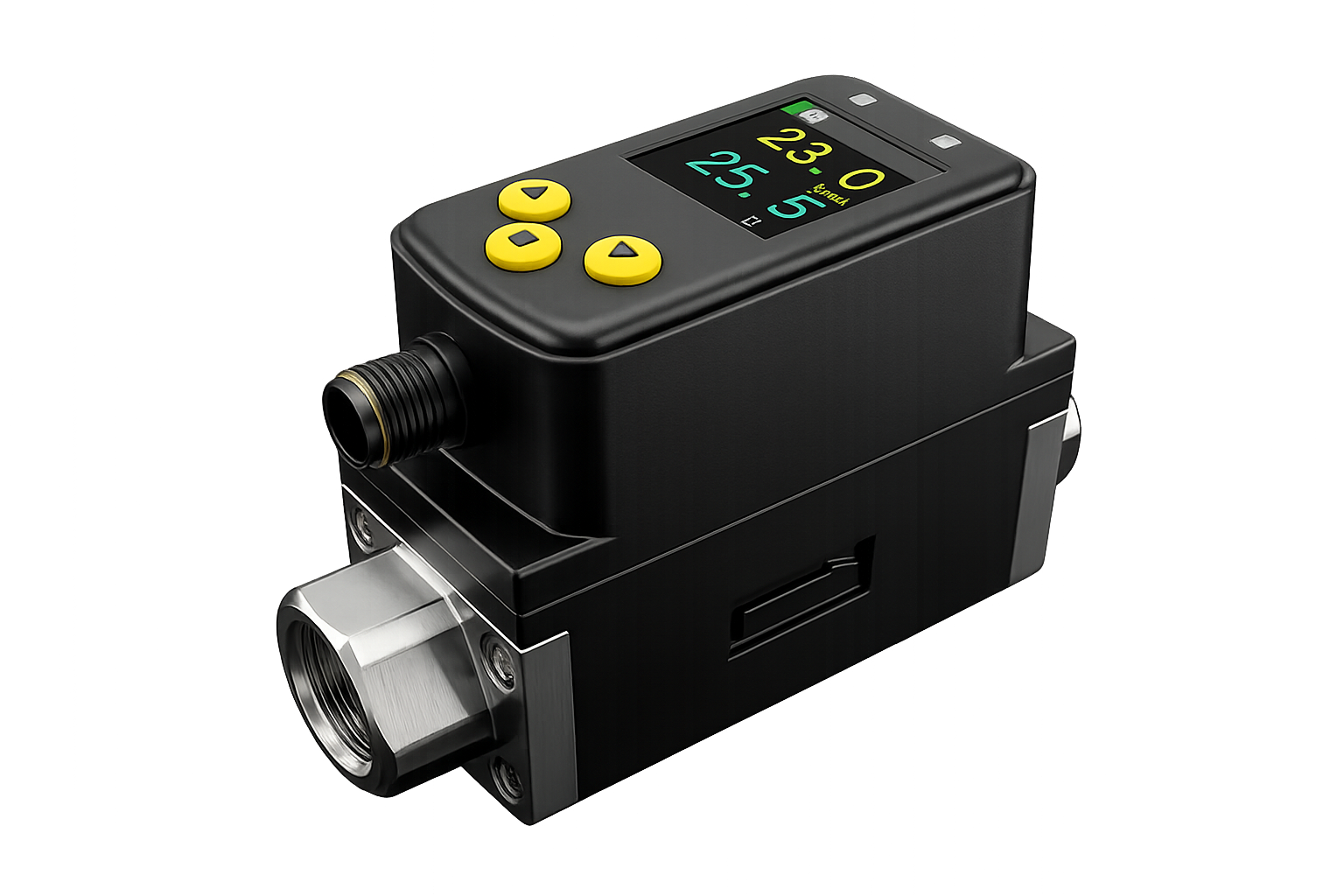

Series Technical Specifications
Principle
Kármán Vortex
Monitoring
Flow / Temperature
Display
IPS Screen
View
4-Direction Rotation
Function
Total Flow Recording
Output
Analog / Switching / IO-Link
Switching
NO / NC / NPN / PNP / Push-Pull
Data Mapping
Flow / Temperature
Flow Range
2–16 / 5–40 / 10–100 L/min
Accuracy
<3% FS
Connection
G / Rc / NPT
Protection
IP65 / 16 bar
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
