EU Machinery Directive Compliant
Available Models
Series Technical Specifications
Sizes
M8 / M12 Standards
Housing
Plastic / Metal Housing
Gender
Male / Female Options
Pins
4 / 5-pin Options
Type

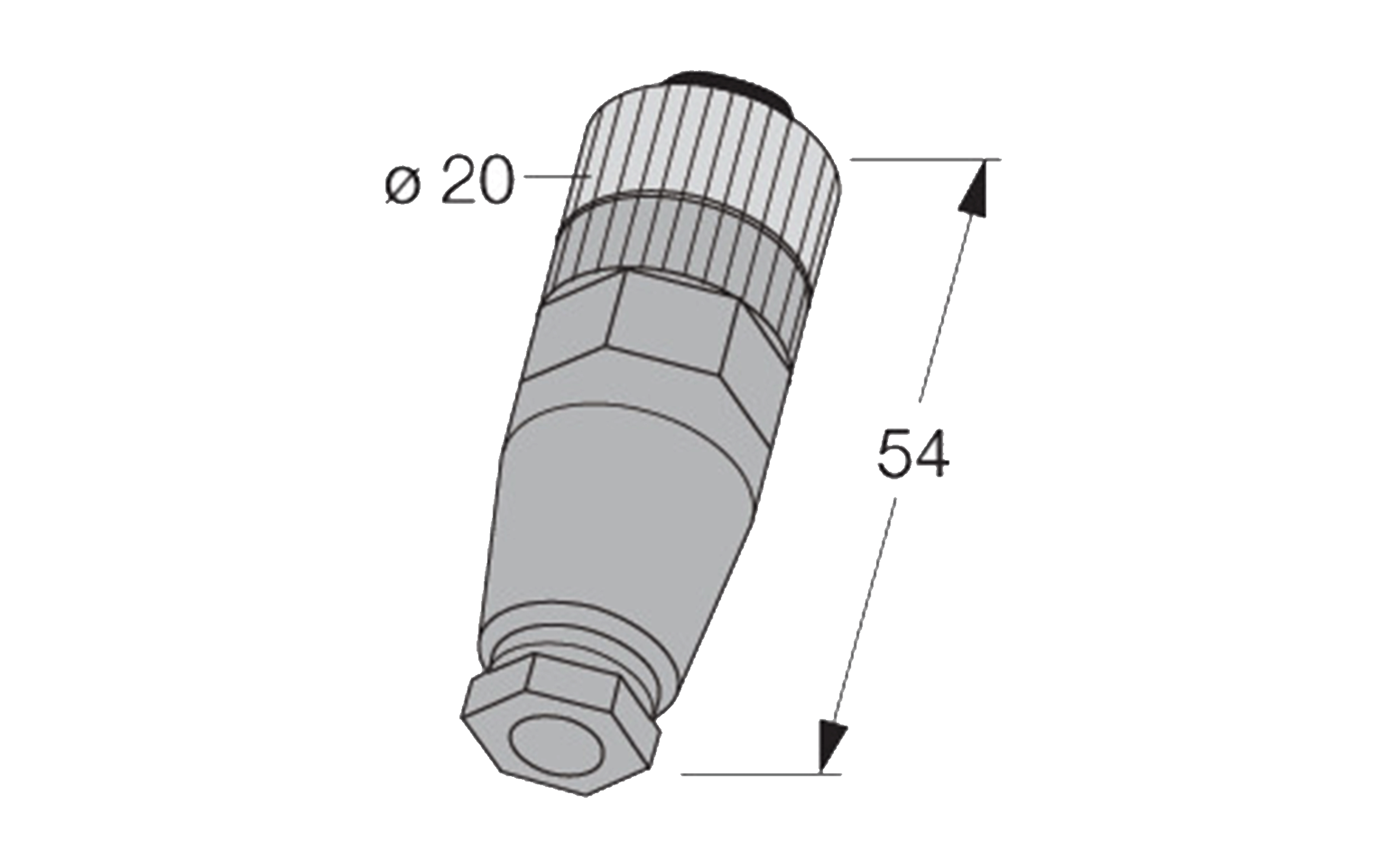

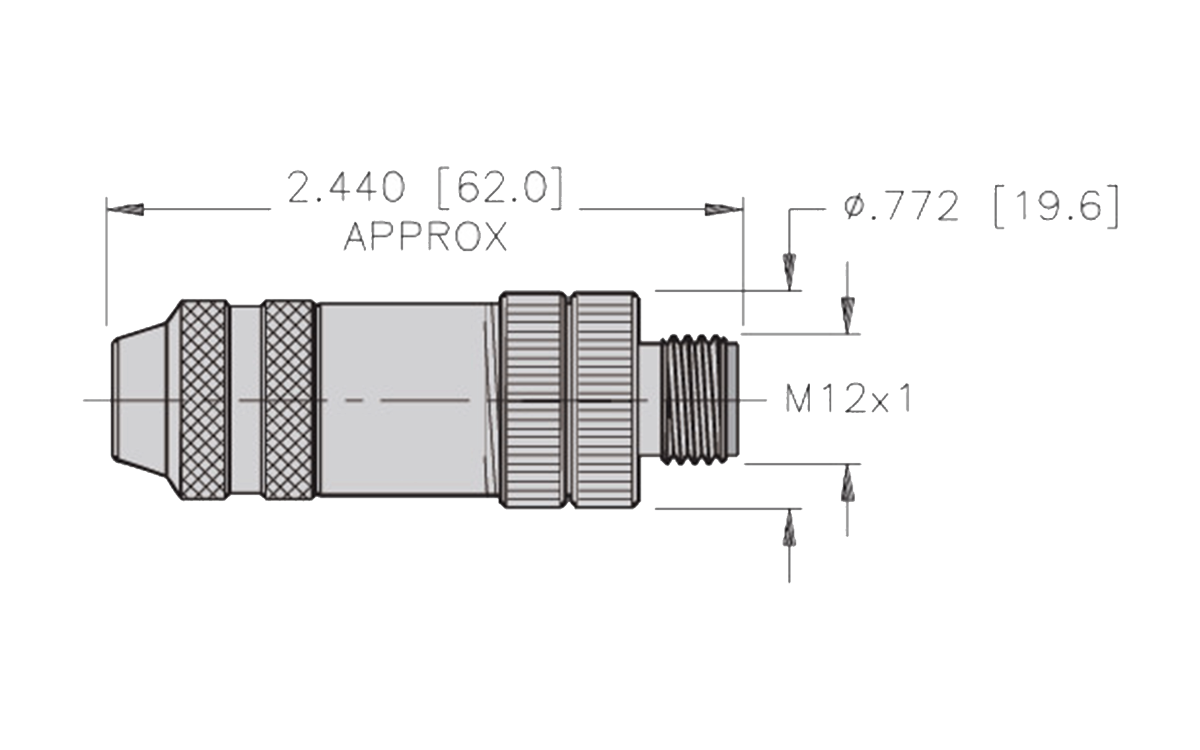

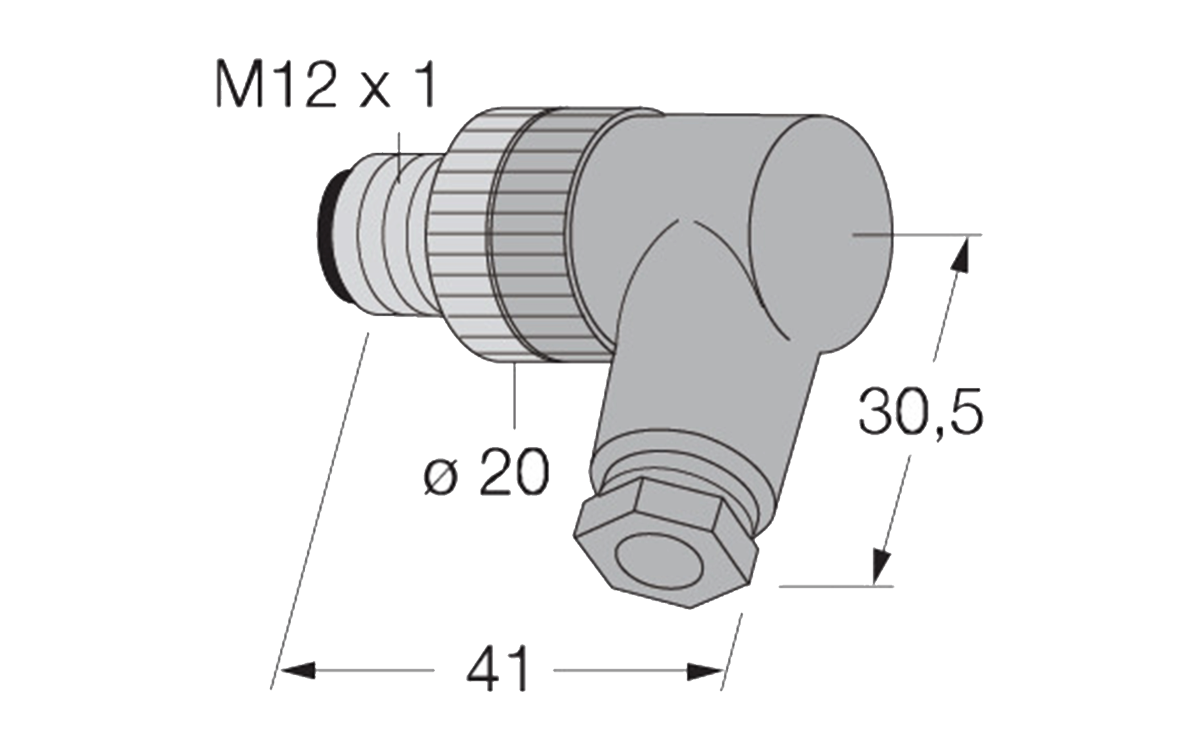

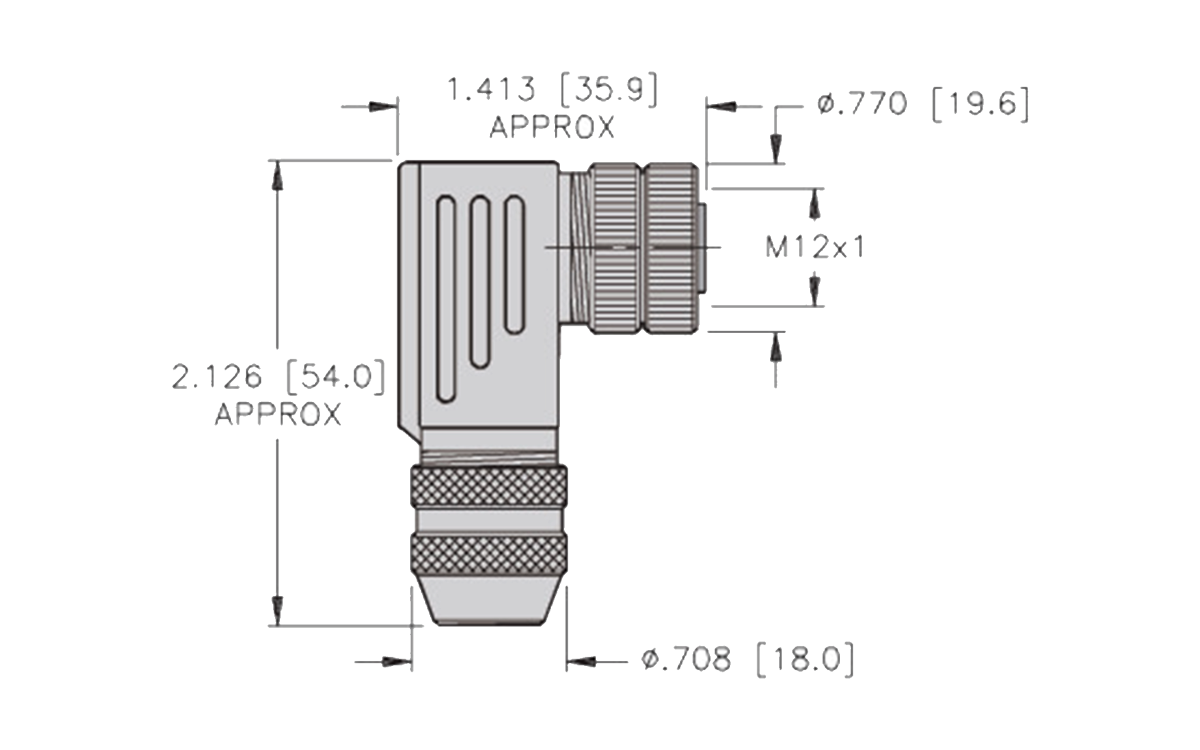

Straight / Angle Connector
Coding
A-coded / D-coded Options
Thread
PG7 / PG9 / PG11 Cable Entry
Cable
3...10 mm / 8.5 mm Diameter
Wiring
Screw / Clamp Connection
lectrical
10–30 V / 4 A
Protection
IP67(screwed together)
Assembly
One-to-two Field Assembly
Core Advantages
Standardized & compatible
No special cables needed, works with existing setups
Cost-effective upgrade
Evolves existing tech, no system replacement, cuts complexity
Comprehensive ecosystem
Multi-protocol masters + diverse slaves, full-link coverage
Efficient & reliable
Low-cost transmission, boosting efficiency while reducing costs
