Module：CIOL-2AI-SC
IO-Link Converter
CIOL-2AI-SC is a compact IO-Link converter designed for analog signal acquisition in industrial automation systems. With two independent 4–20mA / 0–20mA input channels, IO-Link V1.1 communication, M12 A-coded Class A interface, and 0.5% F.S. measurement accuracy, it converts traditional analog sensor signals into digital IO-Link data for easier monitoring and system integration.
- 2 Analog Input Channels
- 4–20mA / 0–20mA Input
- IO-Link V1.1
- M12 A-code Class A
- 0.5% F.S. Accuracy
- LED Status Indicators
Contact for pricing
Full Technical Specification
Specification
Value
Supply voltage
24VDC ± 10%
Operating current
< 50mA
Supply current to the sensor

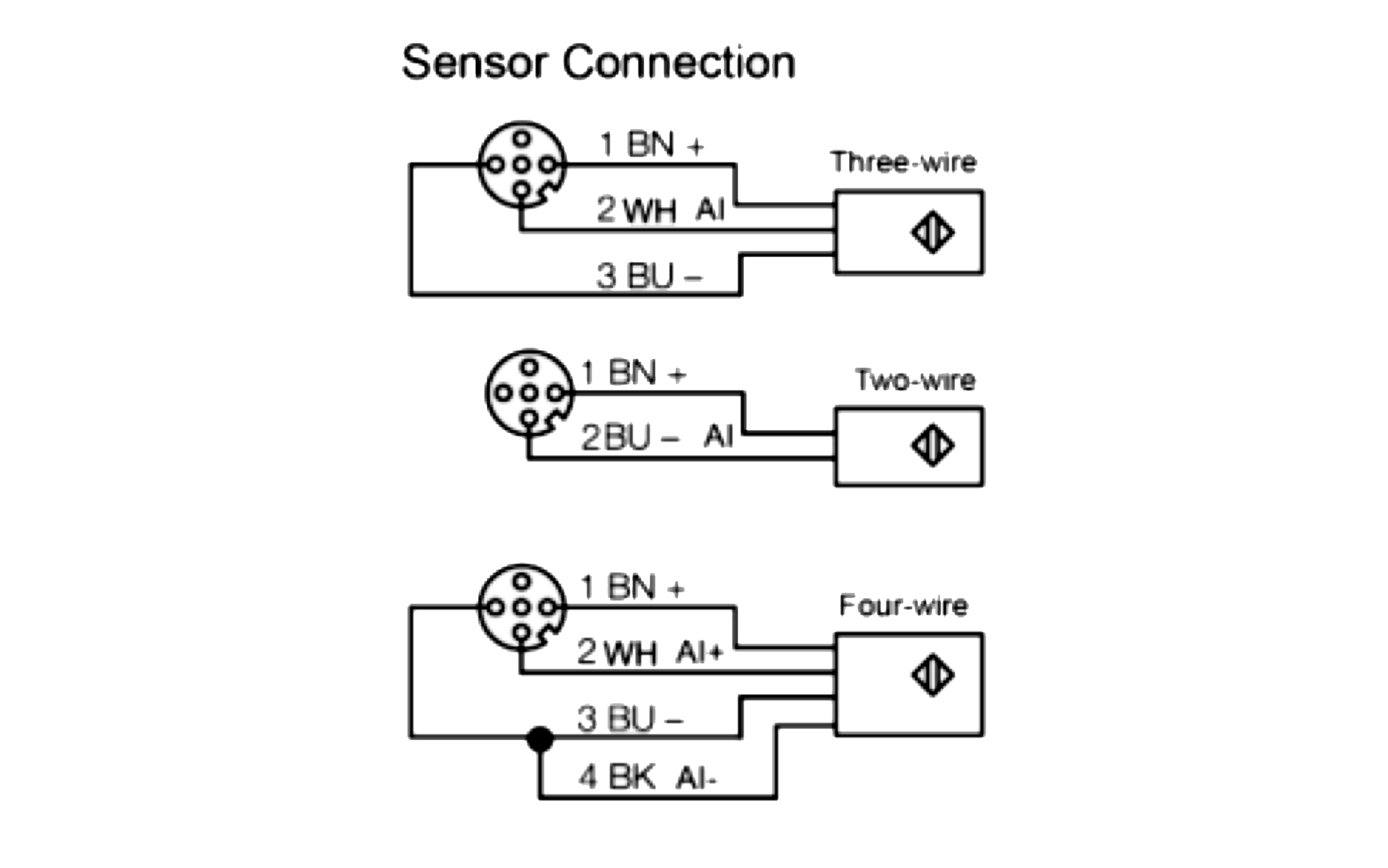

Max 500mA(Note: External supply via pin 1 and pin 3 of M12 female connector)
Analog input
Number of channels
2
Connectivity inputs

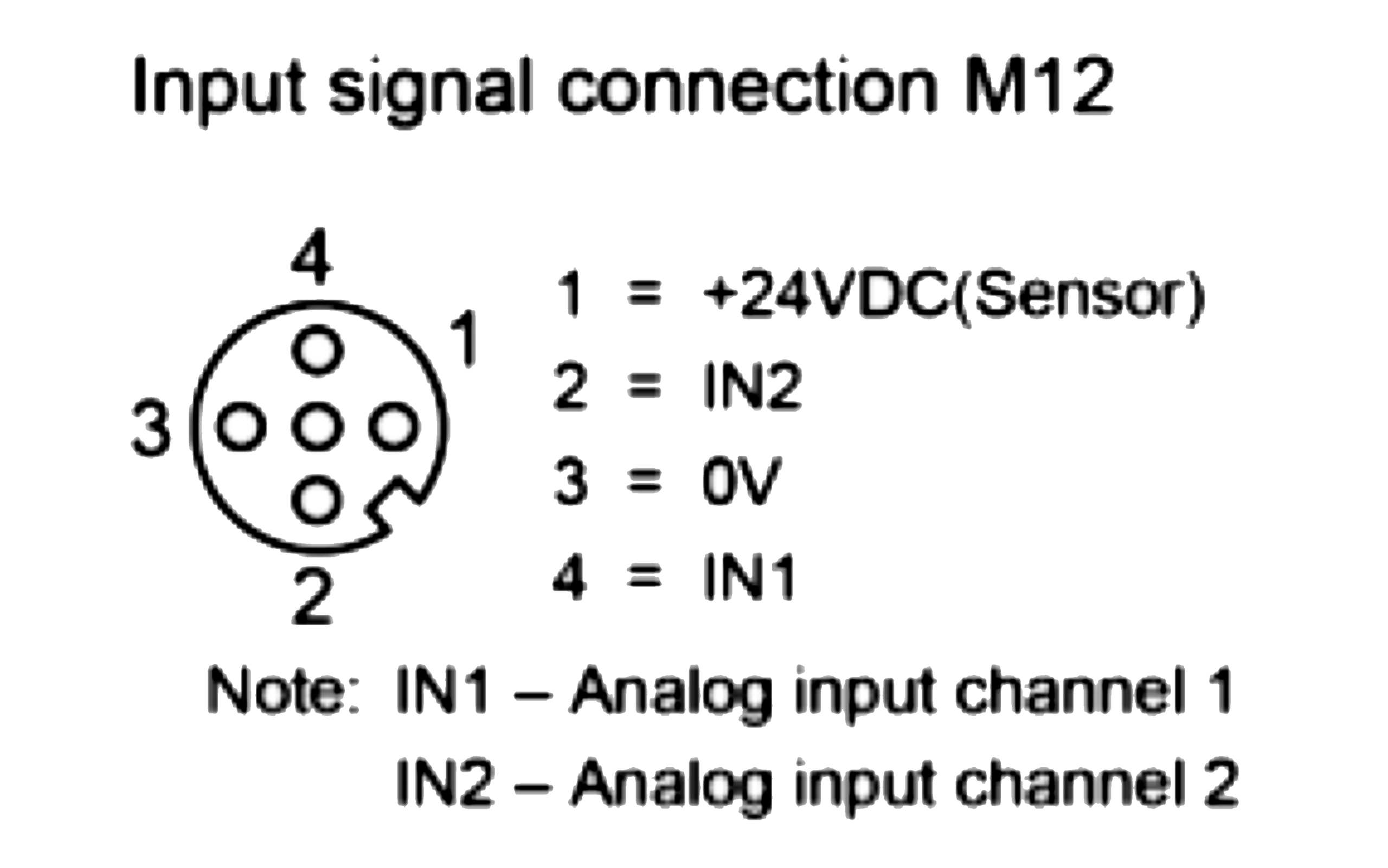

M12 A-coded,4-pin female
Input type
4-20mA/0-20mA Analog input
Input resolution
≤12bits
Measurement accuracy
0.5%F.S
Data format
data in uA
Max input range
0-22mA
IO-Link
Vendor ID
1317(0x0525)
Device ID
262673 (0x040211)
Number of ports

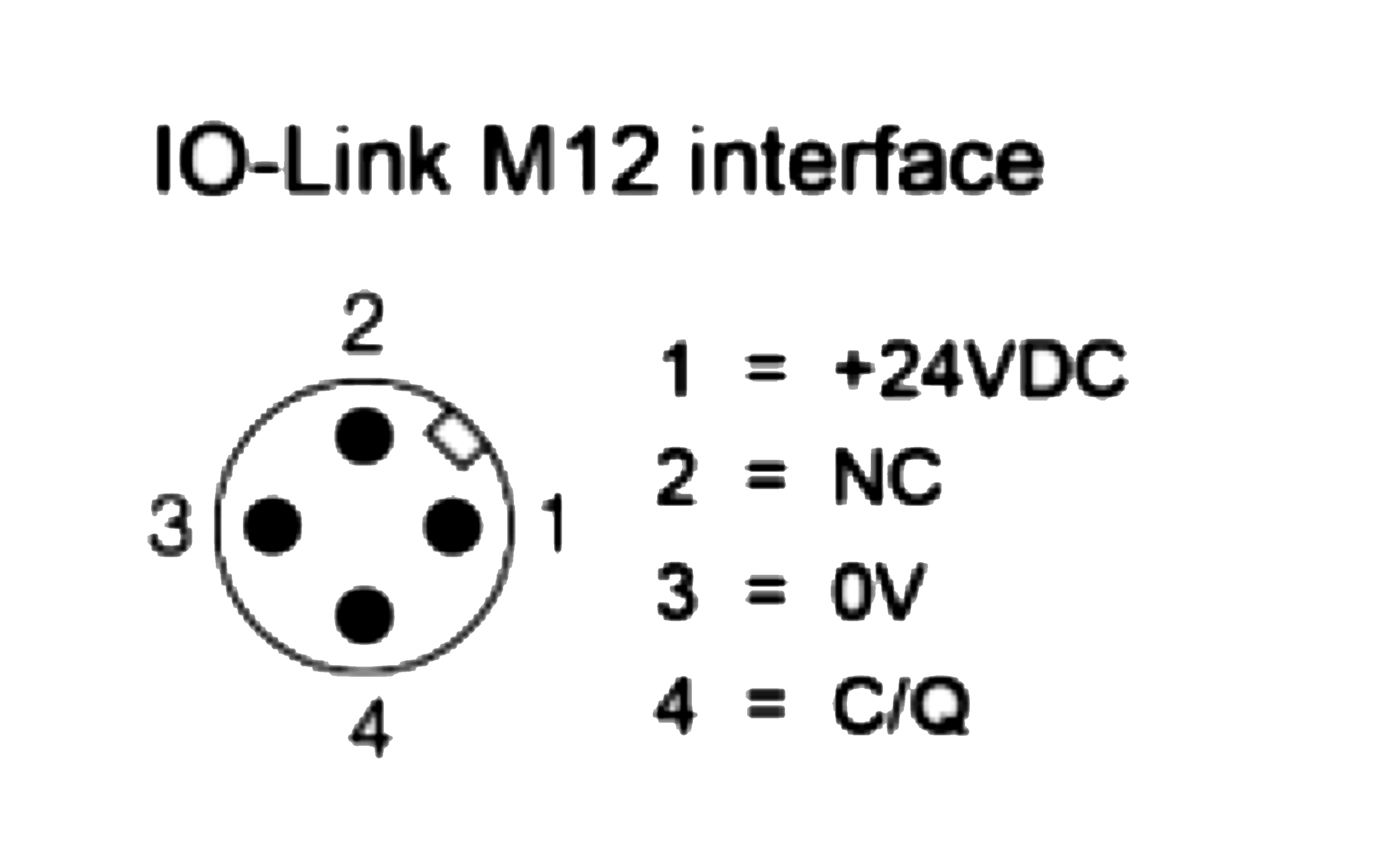

1(M12 A-code 4-pin male)
IO-Link port type
Class A
IO-Link input byte
4 bytes
Frame type
TYPE_2_V
Transmission rate
COM2 38.4 kbit/s
Minimum cycle time
4000us
ISDU
Supported
Block parameter operation
Not support
Data storage (DS) / Data storage lock
Supported
IO-Link specification
V1.1
Operating temperature
-25-80℃
Product Features &Benefits
SENTINEL IO-Link converters are designed to bring existing analog sensors into IO-Link systems without replacing field devices. They convert standard current signals into digital IO-Link data, helping users simplify signal acquisition, improve data visibility, and support automation system upgrades.
2 Analog Inputs
Collect two independent current input signals in one compact device
Current Signal Conversion
Converts 4–20mA or 0–20mA analog signals into IO-Link data
High Measurement Accuracy
0.5% F.S. accuracy supports stable analog signal acquisition
IO-Link V1.1
Standard IO-Link communication for process data and parameter access
M12 Class A Interface
M12 A-coded 4-pin interface for standard IO-Link connection
LED Status Indication
Transparent housing allows clear visibility of device status indicators
