Module：SIOL-M8-8DIP/LS
IO-Link Hub
SIOL-M8-8DIP/LS is an IO-Link Hub designed for collecting digital input signals from field-level sensors in industrial automation systems. With 8-channel PNP input, IO-Link V1.1 communication, M8 sensor connections, M12 IO-Link interface, and IP67 protection, it helps simplify field wiring and transfer sensor status data efficiently to the IO-Link master.
- 8 Digital Inputs
- IO-Link V1.1
- PNP Input
- M8 Sensor Ports
- M12 IO-Link Interface
- IP67 Protection
Contact for pricing
Full Technical Specification
Specification
Value
Supply voltage
24VDC ± 10%
Operating current
<100mA
Maximum Supply current
1.4 A
Input
Number of channels
8

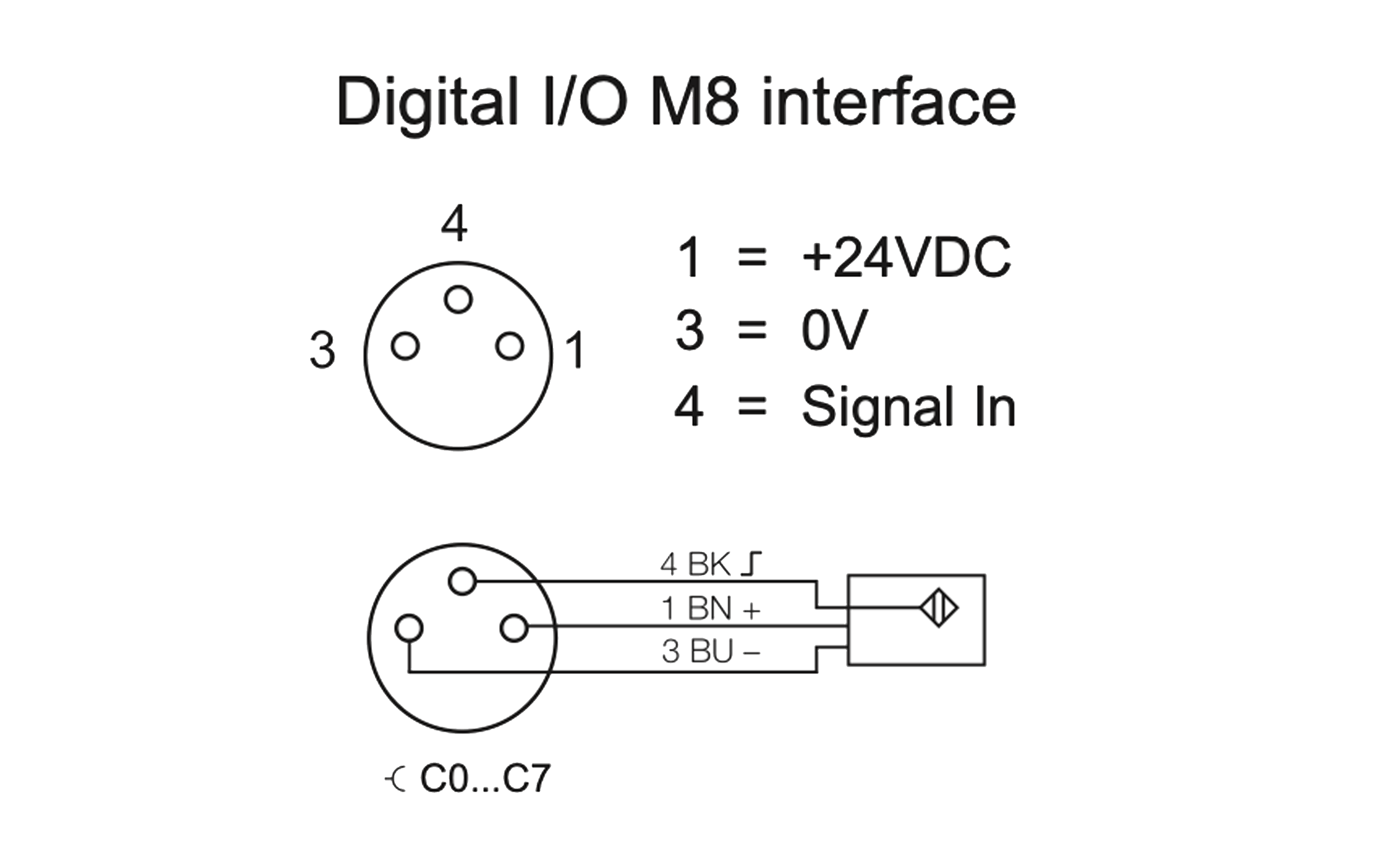

Connectivity inputs
M8, 3-pin
Input type
PNP or NPN(Depends on the model)
Input impedance
3K
Input rated current
7mA
Input delay
3ms
Switch threshold
2mA/4mA 7V/11V
Electrical isolation mode
Optocoupler isolation
Sensor power supply
Maximum 150 mA
IO-Link
Process data
6 bytes input,4 bytes output
Vendor ID
1317(0x0525)
Device ID
65808 (0x010110)
Number of ports
1
IO-Link port type
Class A
IO-Link specification
V1.1
Frame type
TYPE_2_1
Transmission rate
COM2 38.4 kbit/s
Minimum cycle time
4000us
ISDU
Supported
Block parameter operation
Not support
Data storage (DS) / Data storage lock
Supported
Operating temperature
-20-55℃
Product Features &Benefits
SENTINEL IO-Link Hubs are designed to collect multiple field-level sensor signals through one IO-Link connection. They help reduce wiring complexity, support distributed installation close to the machine, and make sensor status monitoring easier in automated production environments.
M12 IO-Link Interface
M12 interface connects the hub to the IO-Link master
8 Digital Inputs
Collect up to 8 digital sensor signals through one IO-Link connection
PNP Signal Support
Designed for PNP digital input signal collection
IO-Link V1.1
Standard IO-Link communication for process data transmission
M8 Field Wiring
M8 sensor ports support compact and quick field connection
IP67 Protection
Fully sealed electronics support reliable use in industrial environments
Datasheet PDF
Download Product Datasheet
CAD
Download CAD files
Configuration File
Download Configuration File
Product overview
Download Product overview
Product Catalog
Download Product Catalog
Operation manual
Download Operation manual
