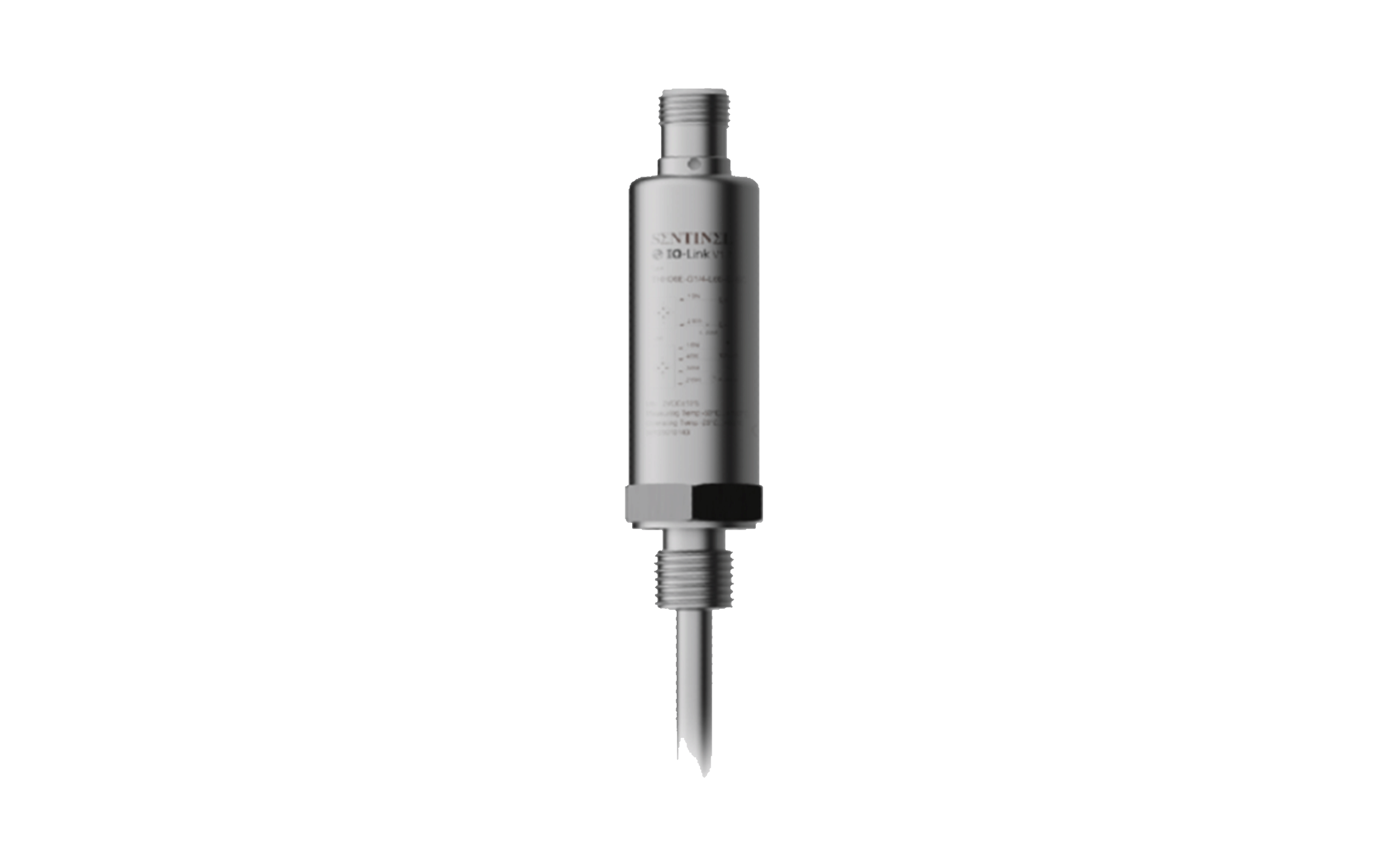

Module：THH06N-G1/4-L66-IL-SC
IO-Link Temperature transmitter
Sentinel temperature transmitters are designed for accurate temperature measurement in industrial automation and process control applications. They are suitable for equipment monitoring, cooling systems, hydraulic units, and production lines.
- IO-Link (automatic wake-up)
- IP67 Protection
- PT1000

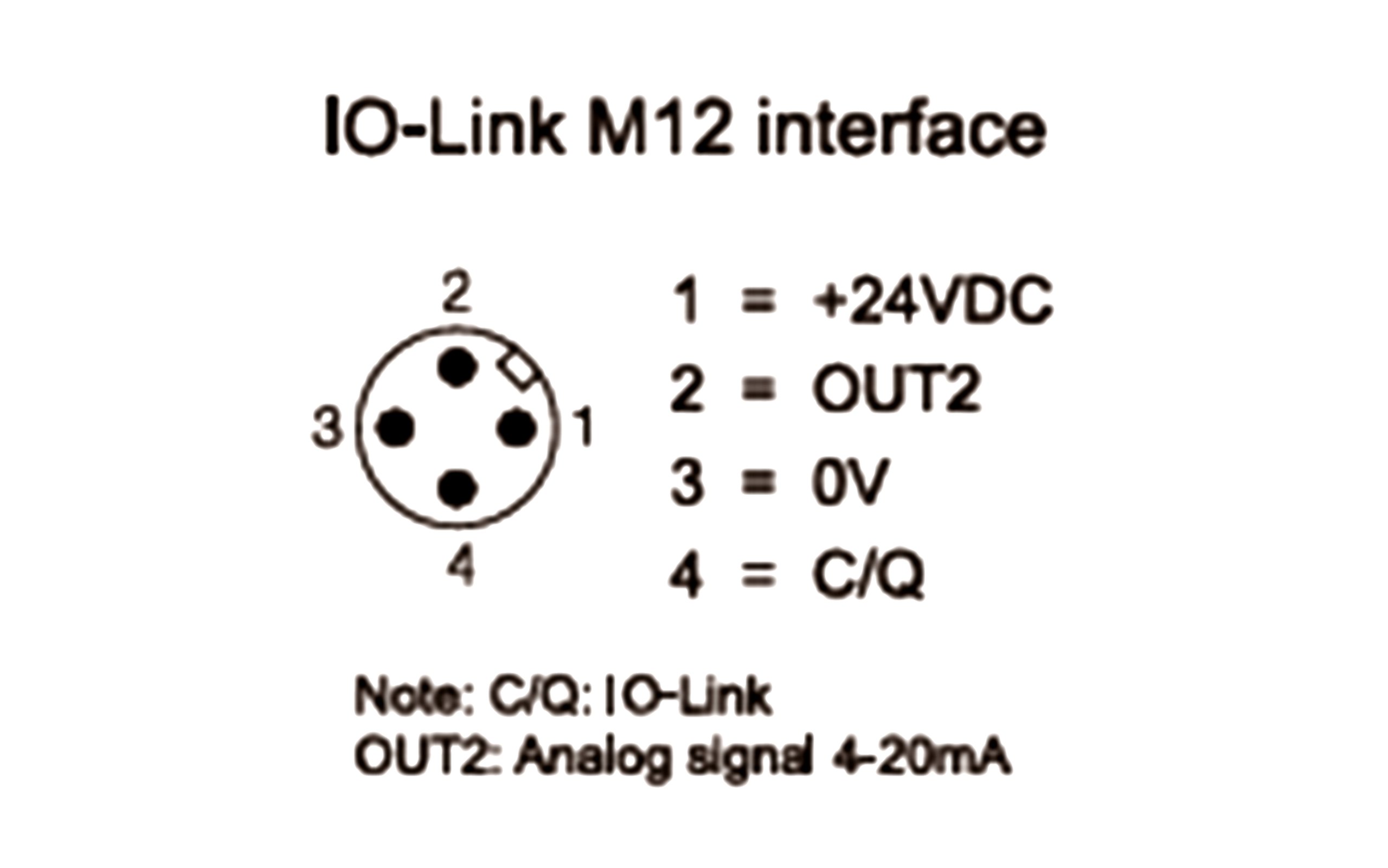

- M12 A code 4 pins
- -50℃...150℃
- Probe length can be customized
Contact for pricing
Full Technical Specification
Specification
Value
Operatingvoltage
24VDC + 10%
Operating current
<50mA
Measuring range
-50°C - 150°C (-58°F 302°F)
Interface type
M12 A code 4 pins
Measuring element
PT1000
Temperature measurement accuracy
0.5°C
OUT2 Signal
4-20mA or 20-4mA
Analog signal output maximum load
200Ω
Analog signal output accuracy
0.5%F.S
Minimum interval between analog signal start and end points
10°C
IO-Link
V1.1
Working temperature
-25-80°C
Protection level
IP67
Product Features &Benefits
Key features include stable temperature output, compact stainless-steel design, fast response, and easy installation. Multiple output options are available, such as analog signal, and IO-Link, making them easy to integrate with PLCs and control systems.
Output
Analog / 4–20 mA
Protection
IP67
Temperature Range
-50 to 150°C
IO-Link
Implement remote configuration and real - time monitoring through the IO - Link interface
Multiple output methods

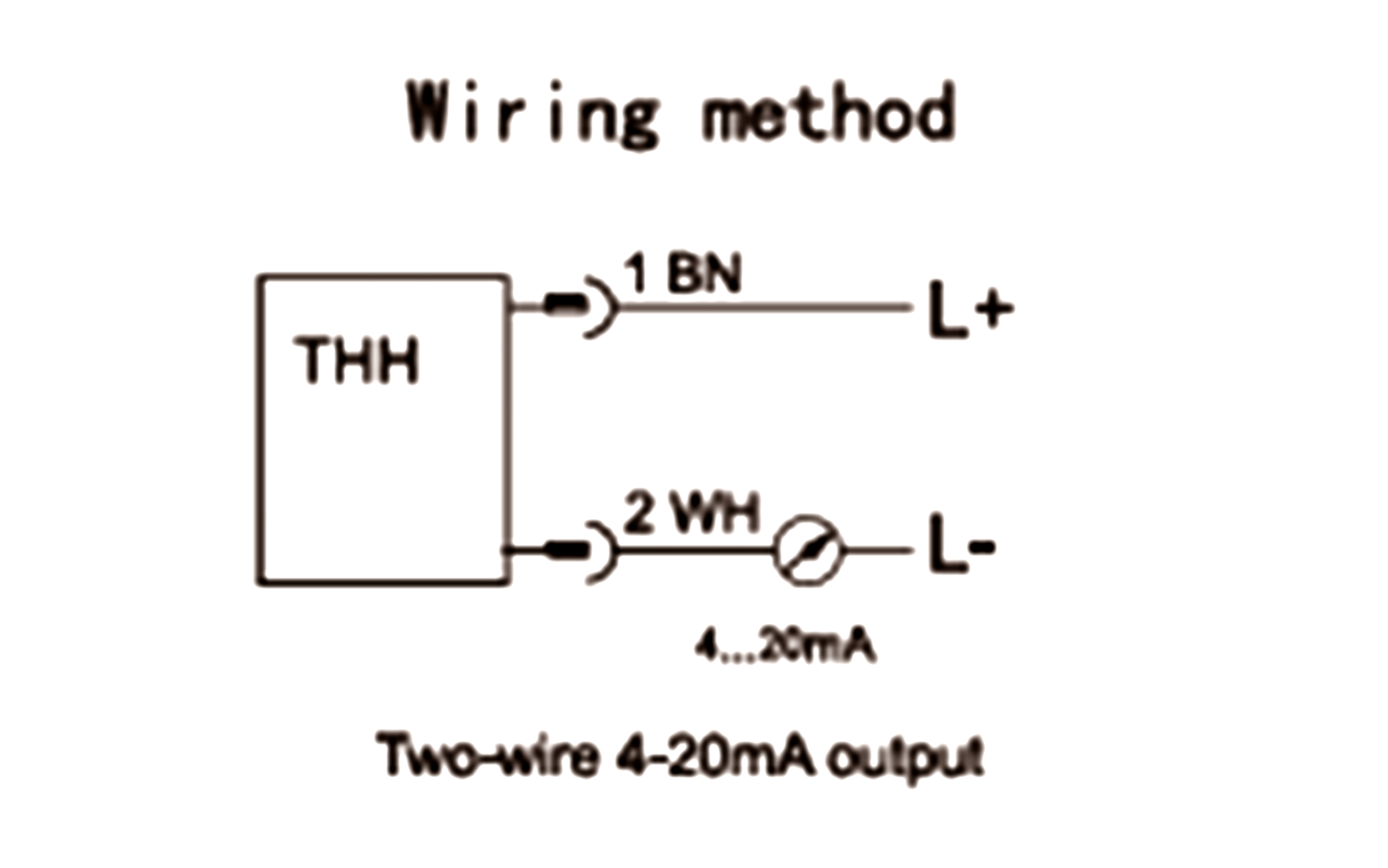

4-20mA two-wire or three-wire output
High precision & stability
PT1000 High-Precision Temperature Measuring Element
Datasheet PDF
Download Product Datasheet
CAD
Download CAD files
Configuration File
Download Configuration File
Product overview
Download Product overview
Product Catalog
Download Product Catalog
Operation manual
Download Operation manual
