Module：TP06N-G1/4-L50-I-SC

IO-Link Temperature transmitter

Sentinel temperature transmitters are designed for accurate temperature measurement in industrial automation and process control applications. They are suitable for equipment monitoring, cooling systems, hydraulic units, and production lines.

Contact for pricing

Full Technical Specification

Specification

Value

PT100

Class A

Measuring range

-50°C - 150°C (-58°F 302°F)

process connection

Thread G1/4"

Probe length(mm)

15...1000

Measuring element

1 x PT100

Pressure resistance

400(bar)

Accuracy

±1°C

Electrical connection

4-pin M12x1 connector

Ambient temperature

-25...80 °C

Storage temperature

-40...100 °C

Protection level

IP67

Medium

Liquid and Gas

Product Features &Benefits

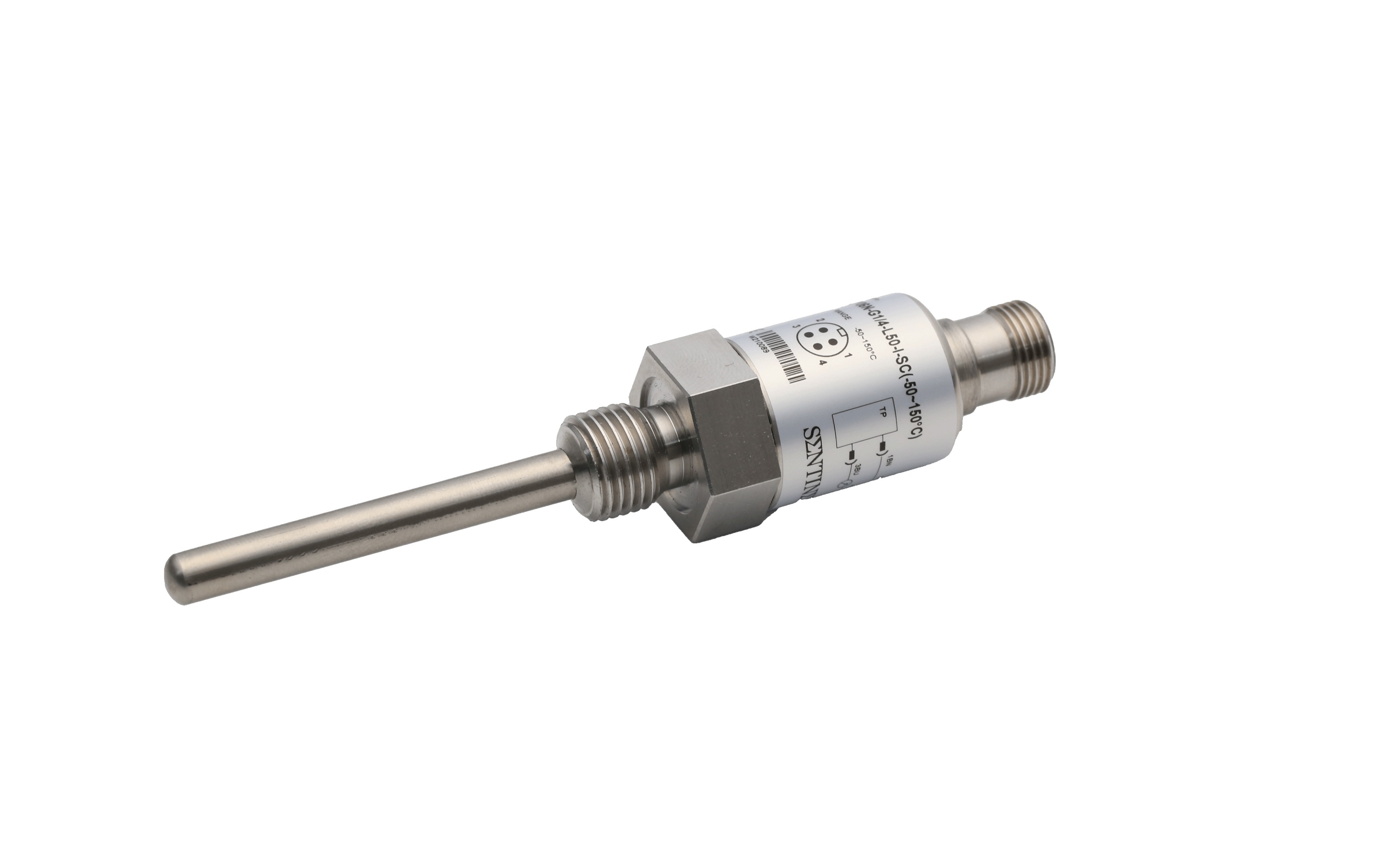

TP06N-G1/4-L50-I-SC is a compact PT100 temperature transmitter designed for reliable temperature monitoring in industrial automation systems. With G1/4 threaded installation, 4–20 mA analog output, M12 connection, and IP67 protection, it provides a practical solution for liquid and gas temperature measurement in demanding field environments.

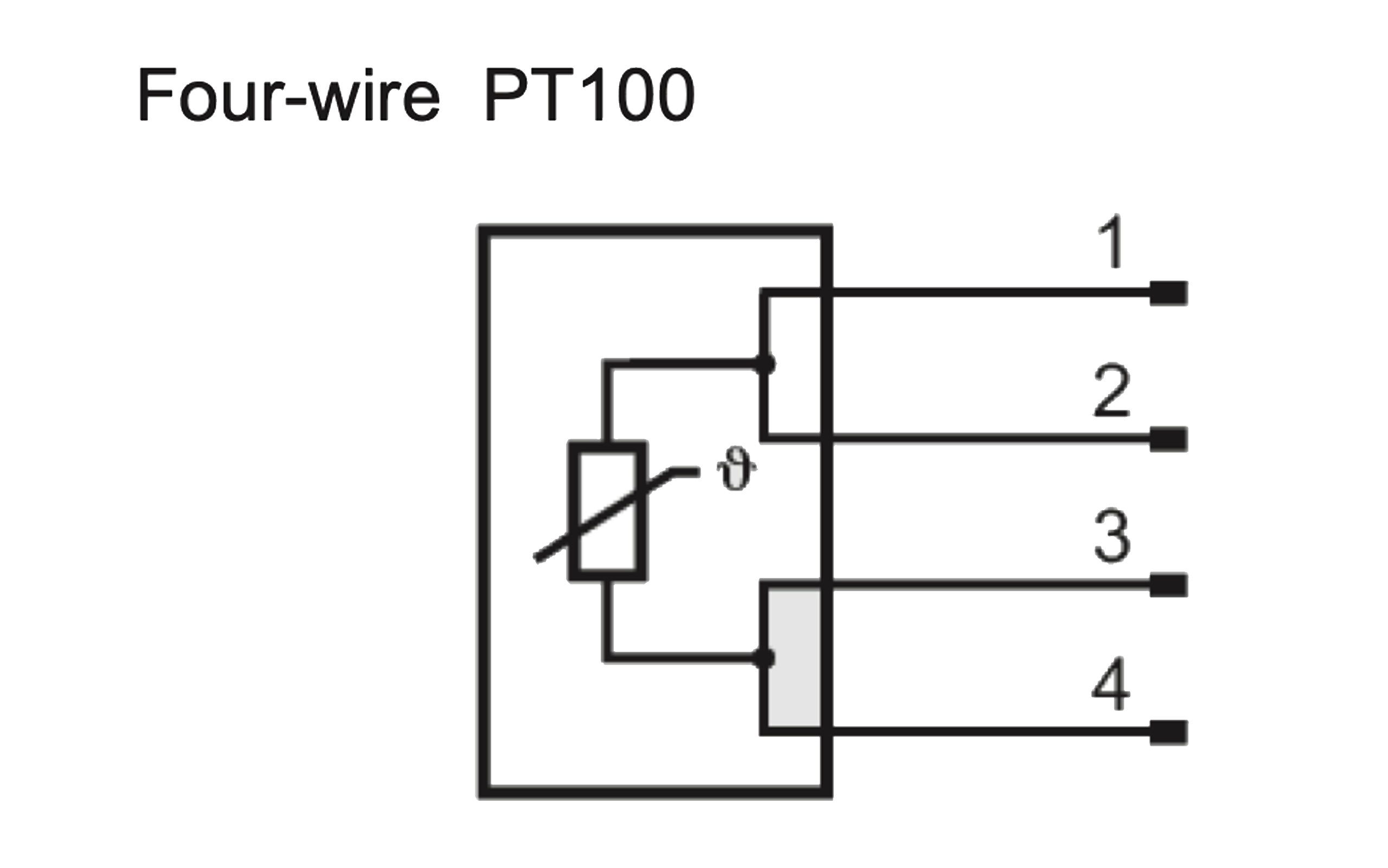

PT100 Temperature Measurement

Reliable temperature detection based on a Class A PT100 sensing element

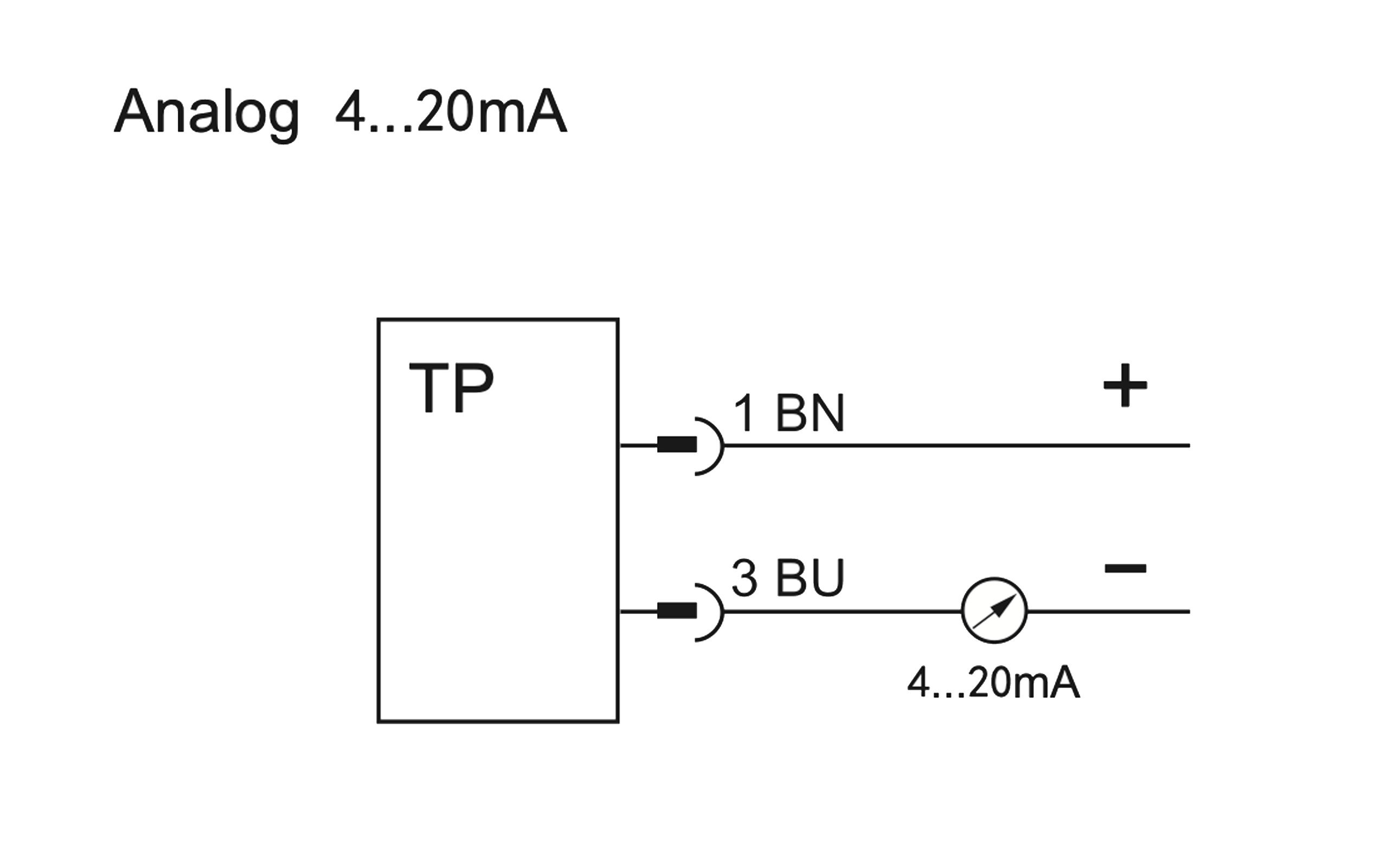

4–20 mA Analog Output

Standard current signal for easy connection to PLCs and control systems

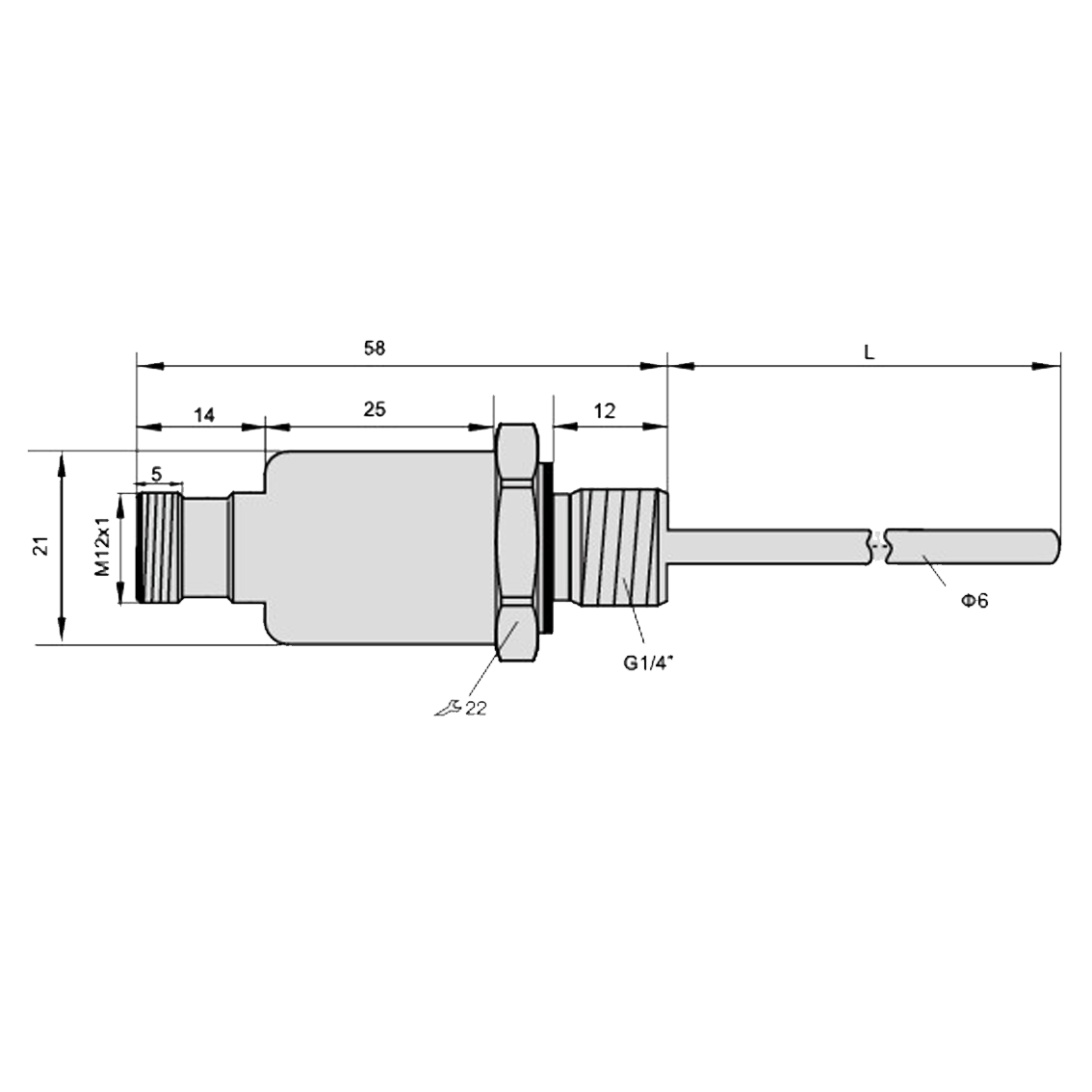

G1/4 Thread Connection

Compact G1/4 external thread for direct installation in pipes or equipment

304 Stainless Steel Probe

Durable probe material for liquid and gas temperature measurement

High Pressure Resistance

Designed for industrial applications with pressure resistance up to 400 bar

M12 Connector & IP67

M12x1 connection and IP67 protection for reliable field installation
