Module：FMV-016-2AO-XXX
Vortex Flow Sensor
In the field of modern industrial automation, accurate flow measurement is crucial for ensuring the efficiency and quality of the production process. Vortex flow sensors play an indispensable role in many application scenarios due to their high precision, stability, and reliability.
- 4-20mA output
- Flow,Temperature dual switching signal output
- Cumulative flow recording function
- Von Kármán vortex principle
- High-resolution IPS display
- Various thread specifications and model selections
Contact for pricing
Full Technical Specification
Specification
Value
Flow parameters
Measuring medium
water
Measuring range
2-16 L/min (0.12 -0.96 m³/h)
Flow accuracy
<3.0%F.S
Cumulative flow range
99999L or 99999m3 Note:Power off reset,For reference only
Contact liquid material
PPS/SUS304(Stainless steel)
Process connection
Thread G or RC or NPT Model selection
Pressure Level
10bar,greatest pressure16bar
Real-time flow unit
L/min m³/h button optional
Temperature parameters
Measuring range
0-100°C
Temperature accuracy
1℃
Display units
℃ or ℉ Button optional
Analog output
Output channels
2

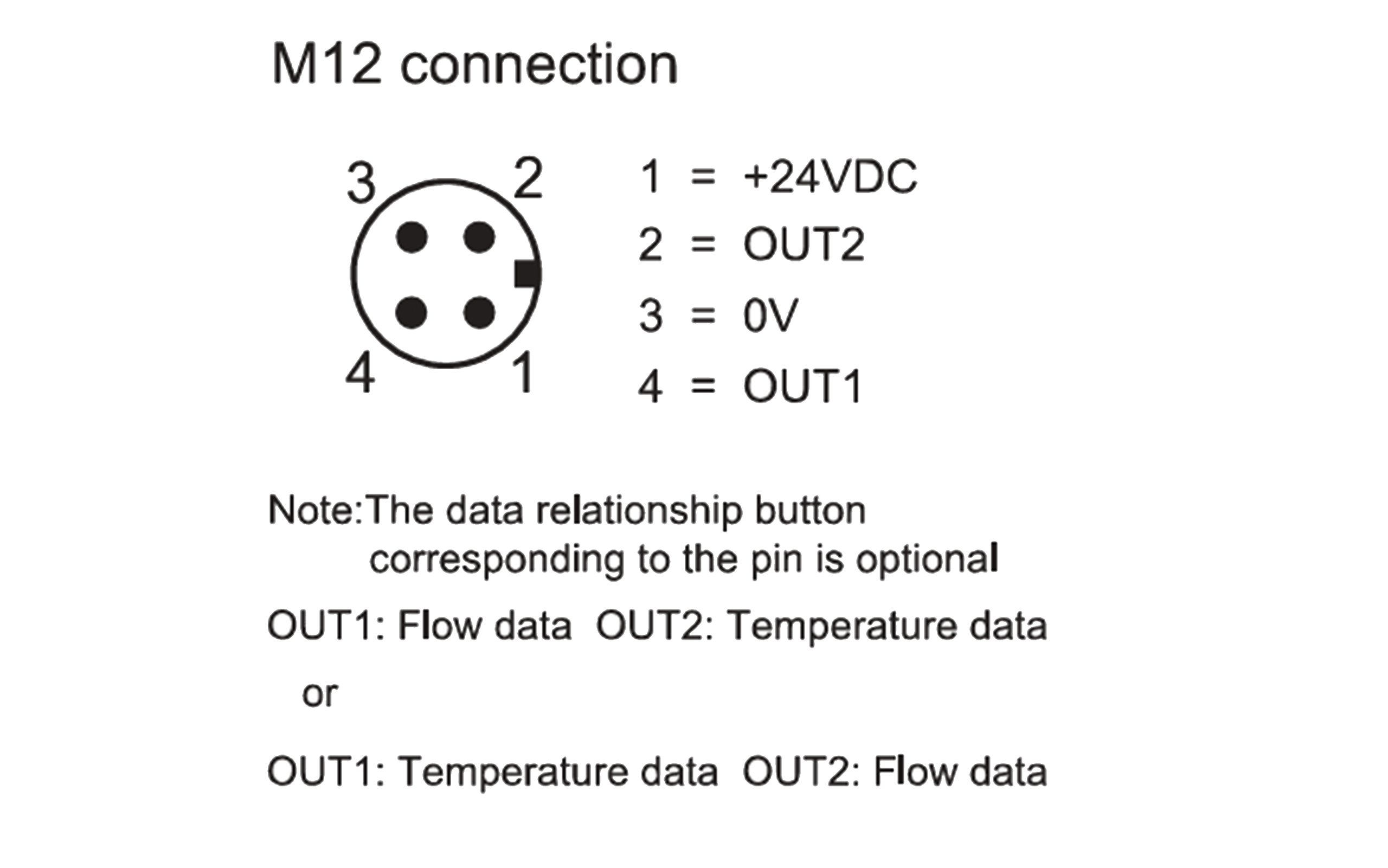

Interface Type
M12 4-pin

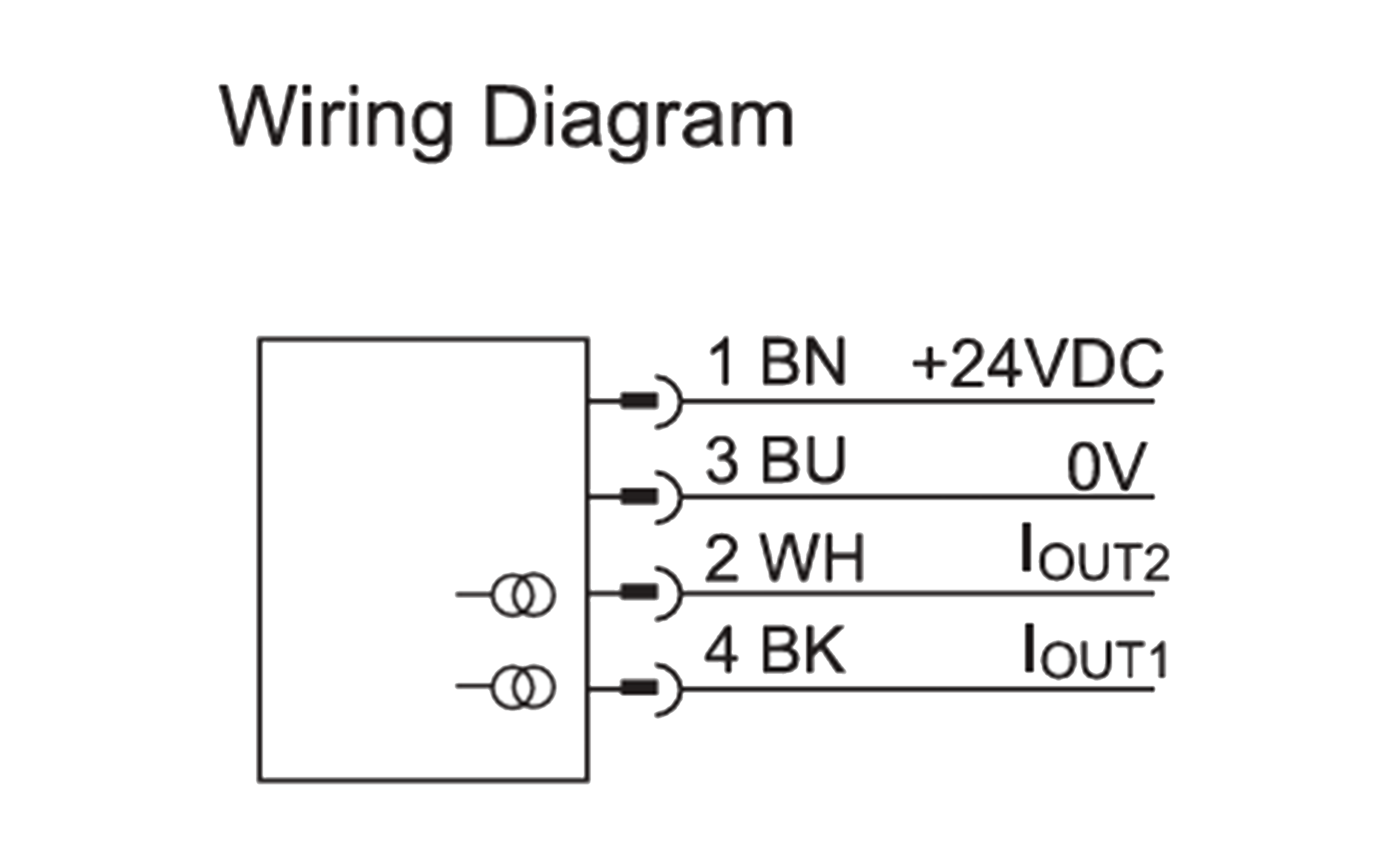

Output method
4-20mA output
Output data correspondence
Button optional(OUT1:Flow OUT2:Temperature)((OUT1:Temperature OUT2:Flow)
Ambient temperature
-10...+65℃
Protection level
IP65
Product Features &Benefits
Sentinel vortex flow sensors are designed for reliable flow monitoring in industrial water and cooling circuits. Based on the Kármán vortex principle, they provide stable flow measurement without moving parts, while optional IO-Link communication enables remote parameter setting, process data reading, and easier integration with PLC control systems.
Multiple interface models：
FMV-016-2AO-G12, FMV-016-2AO-G38, FMV-016-2AO-RC12,
FMV-016-2AO-RC38, FMV-016-2AO-NPT12, FMV-016-2AO-NPT38
Vortex Flow Measurement
Stable flow monitoring based on the Kármán vortex principle
Flow & Temperature Monitoring
Measure flow rate and medium temperature in one compact device
Dual 4–20 mA Outputs
Two analog outputs for flow and temperature signal transmission
Totalized Flow Display
Record cumulative flow for system monitoring and maintenance
High-Resolution IPS Display
Clear local display with selectable flow and temperature units
Flexible Installation
G, RC, or NPT thread options with M12 4-pin connection
